103A0-C500-00
Active3M

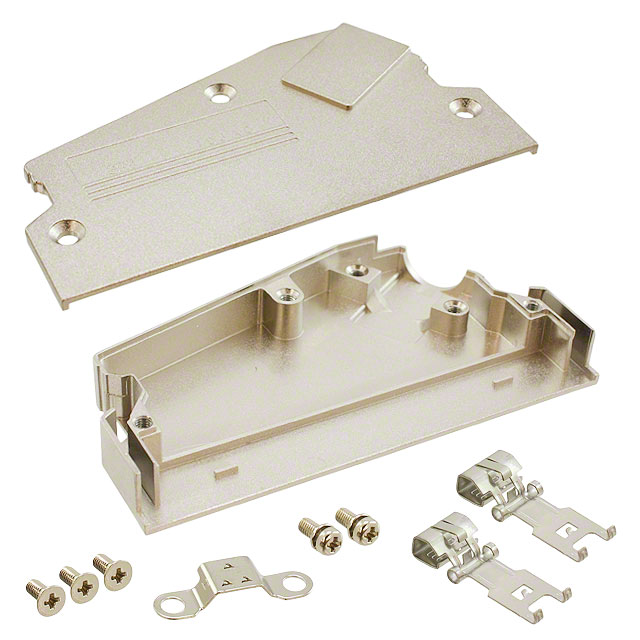

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 100 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
103A0-C500-00
Active3M
CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 100 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103A0-C500-00 | 103A0 Series |
|---|---|---|
| Accessory Type | - | Two Piece Backshell |
| Cable Exit | - | 60 - 180 ° |
| Cable Type | - | Round, Flat |
| Color | - | Silver |
| Features | - | Latch Lock, Mating Screws 4-40 |
| Hardware | - | Assembly Hardware, Gasket |
| Material | - | Zinc Alloy, Metal, Metal, Zinc |
| null | - | |
| Number of Positions | - | 100 |
| Plating | - | Nickel |
| Primary Material | - | Metal |
| Shielding | - | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
103A0 Series
CONN BACKSHELL 100P 180DEG SHLD
| Part | Material | Color | Cable Type | Number of Positions | Cable Exit | Accessory Type | Primary Material | Shielding | Features | Plating | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|
Metal, Zinc Alloy | Silver | Round | 100 | 180 ° | Two Piece Backshell | Metal | Shielded | Latch Lock | Nickel | ||
Zinc Alloy | Silver | Round | 100 | 60 ° | Two Piece Backshell | Metal | Shielded | Latch Lock | Nickel | ||
Metal, Zinc | Silver | Flat | 100 | 180 ° | Two Piece Backshell | Metal | Shielded | Mating Screws 4-40 | Nickel | Assembly Hardware, Gasket | |
Zinc Alloy | Silver | Round | 100 | 180 ° | Two Piece Backshell | Metal | Shielded | Latch Lock | Nickel | ||
Description
General part information
103A0 Series
100 Position Two Piece Backshell Connector Silver 60° Shielded
