WLGCA2-2LD

Obsolete

Omron Automation and Safety

SWITCH SNAP ACTION SPDT 5A 125V

WLGCA2-2LD

Obsolete

Omron Automation and Safety

SWITCH SNAP ACTION SPDT 5A 125V

Description Specifications Series Pricing CAD Documents

Description

General part information

WL Series

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	WLGCA2-2LD

Actuator Type	Side Rotary, Roller
Circuit	SPDT (DB/DM)
Current Rating	0.4 A, 5 A
Differential Travel (Angle)	3 °
Electrical Life (Cycles)	750000 Cycles
Features	Status Indicator
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1360 gf
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-10 °C
Overtravel (Angle)	40 °
Pretravel (Angle)	5 °
Release Force	150 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

WL Series

Part	Actuator Type	Overtravel (Angle)	Release Force	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Differential Travel (Angle)	Operating Force	Features	Termination Style	Pretravel (Angle)	Voltage Rating - AC	Mechanical Life (Cycles)	Electrical Life (Cycles)	Current Rating	Voltage Rating - DC	Circuit	Switch Function	Mounting Type

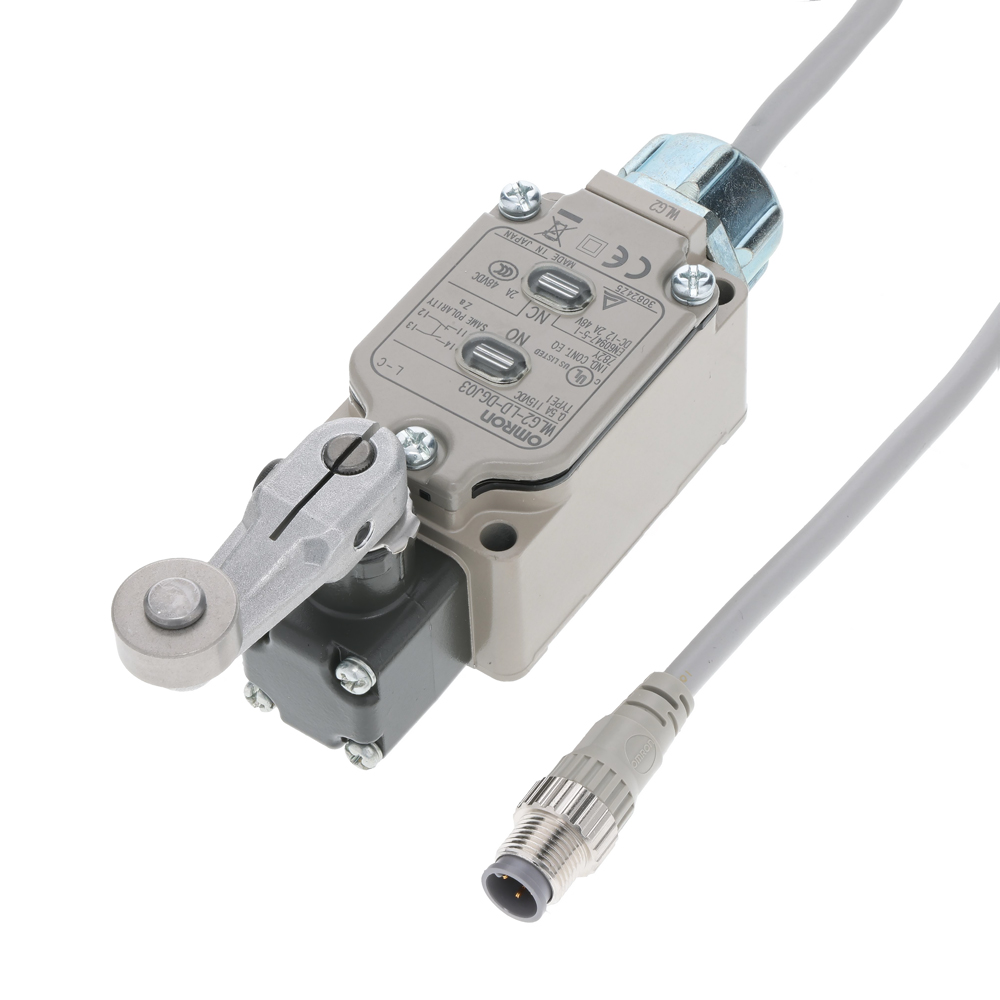

Omron Automation and Safety WLG2-LD-DGJ03	Roller Side Rotary	65 °	100 gf	Dust Tight Waterproof	IP67	-10 °C	80 °C	7 °	1 kgf	Status Indicator	Cable with Connector	10 °	125 V	10000000 Cycles	500000	0.4 A 5 A	125 V	SPDT (DB/DM)	On-Mom	Chassis Mount
Omron Automation and Safety WLCA12-LD-N	Adjustable Roller Side Rotary	70 °	120 gf	Dust Tight Waterproof	IP67	-10 °C	80 °C	12 °	1360 gf	Status Indicator	Screw Terminal	15 °	125 V	15000000 Cycles	750000 Cycles	6 A 10 A	30 V	SPDT (DB/DM)	On-Mom	Chassis Mount
Omron Automation and Safety WLGCA2-2LD	Roller Side Rotary	40 °	150 gf	Dust Tight Waterproof	IP67	-10 °C	80 °C	3 °	1360 gf	Status Indicator	Screw Terminal	5 °	125 V	15000000 Cycles	750000 Cycles	0.4 A 5 A	125 V	SPDT (DB/DM)	On-Mom	Chassis Mount

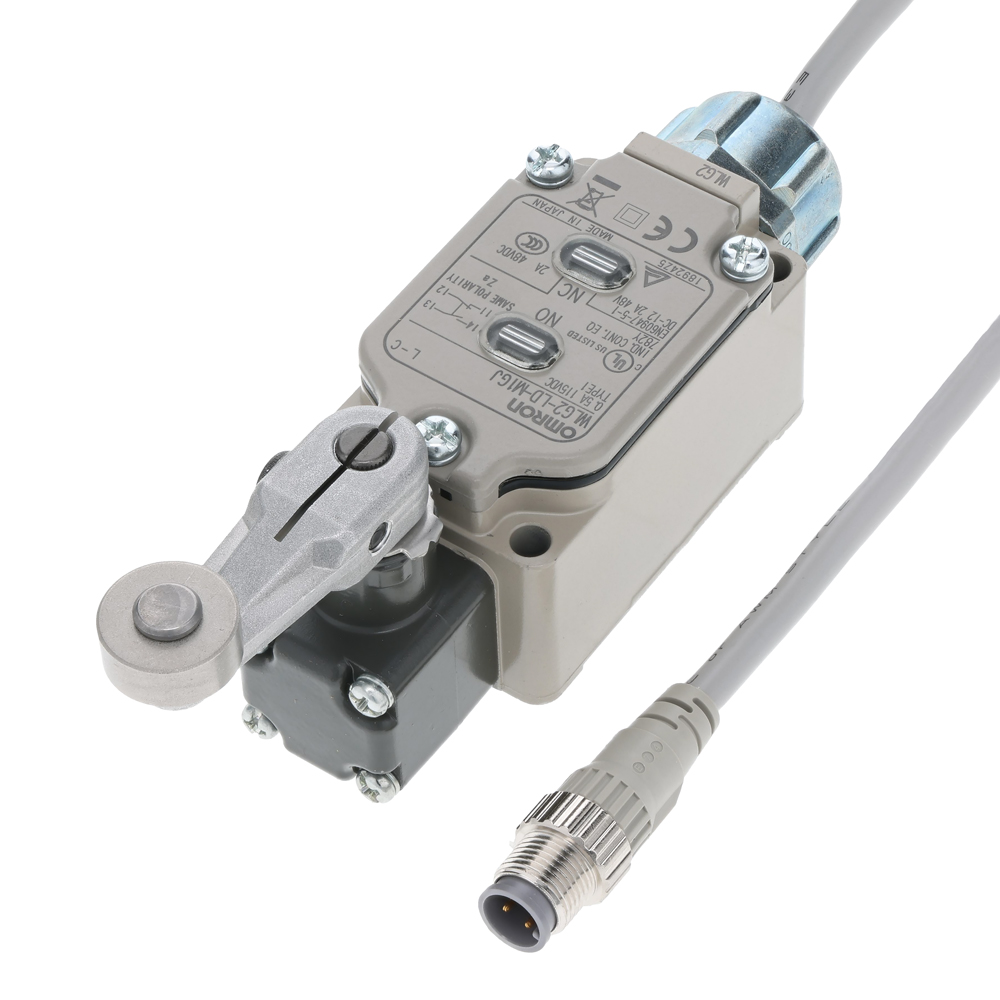

Omron Automation and Safety WLG2-LD-M1GJ 0.3M	Roller Side Rotary	65 °	100 gf	Dust Tight Waterproof	IP67	-10 °C	80 °C	7 °	1 kgf	Status Indicator	Cable with Connector	10 °	125 V	10000000 Cycles	500000	0.4 A 5 A	125 V	SPDT (DB/DM)	On-Mom	Chassis Mount
Omron Automation and Safety WLCA2-LD-N	Roller Side Rotary	70 °	120 gf	Dust Tight Waterproof	IP67	-10 °C	80 °C	12 °	1360 gf	Status Indicator	Screw Terminal	15 °	125 V	15000000 Cycles	750000 Cycles	6 A 10 A	30 V	SPDT (DB/DM)	On-Mom	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

WLGCA2-2LD | Datasheet
