2-2834068-2

Active

TE Connectivity AMP Connectors

CONTACT, PIN, 22-18AWG, CRIMP ROHS COMPLIANT: YES

2-2834068-2

Active

TE Connectivity AMP Connectors

CONTACT, PIN, 22-18AWG, CRIMP ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

SlimSeal Miniature Connectors Series

Connector, Crimp, Wire-to-Wire, 2.5 mm Centerline, Sealable, Wire & Cable, 18 – 22 AWG, -40 – 105 °C [-40 – 221 °F], SlimSeal Miniature Connectors

Technical Specifications

Parameters and characteristics for this part

Specification	2-2834068-2

Connector Type	Contact, Pin
Contact Finish	Tin
Contact Material	Copper Alloy
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Style	Cable/Wire
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

SlimSeal Miniature Connectors Series

Part	Housing Material	Termination	Fastening Type	Style	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Housing Color	Pitch	Mounting Type	Number of Positions	Contact Material	Contact Finish	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating	Current Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)

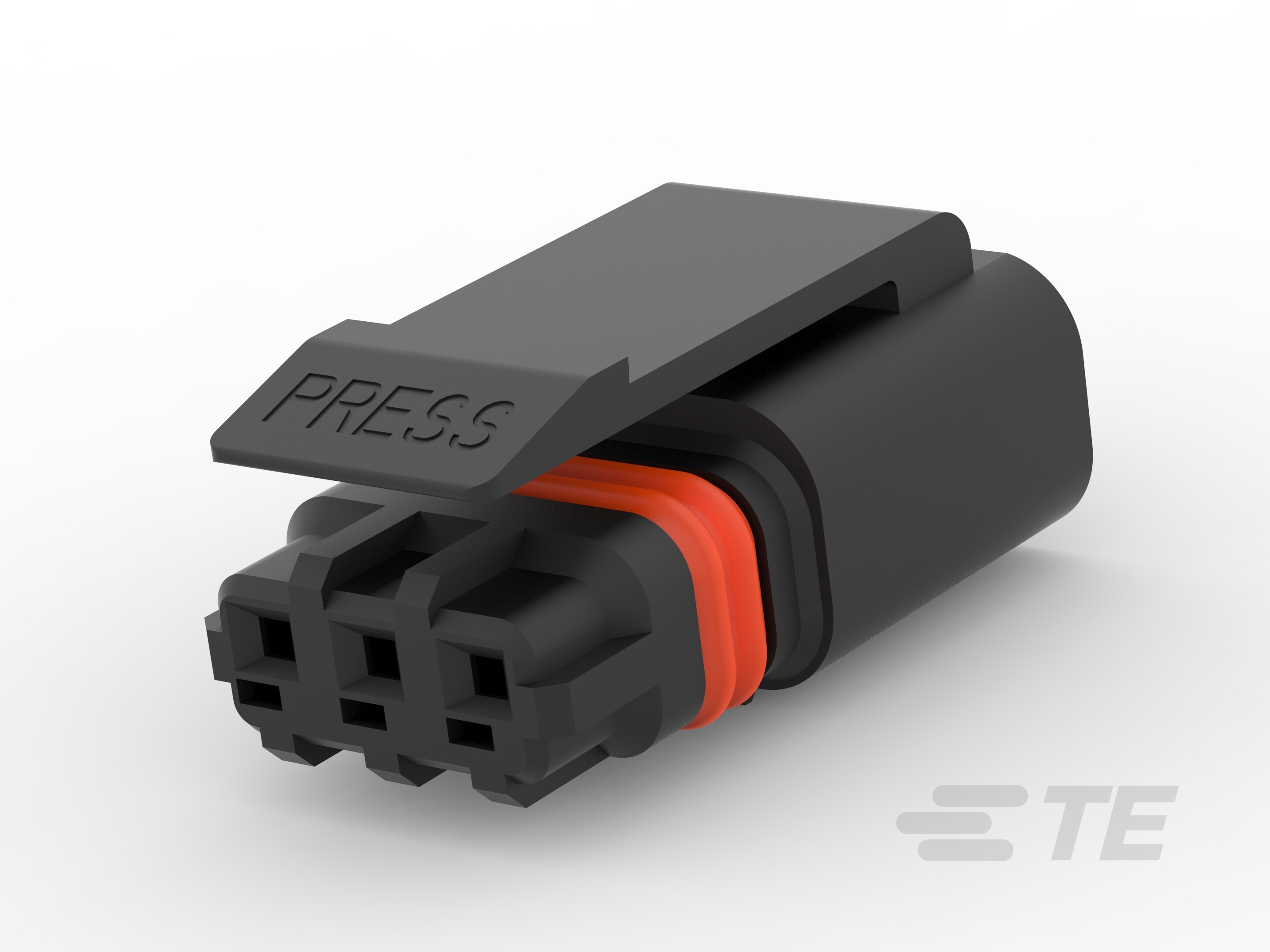

TE Connectivity AMP Connectors 2-2834074-3	Thermoplastic	Crimp	Latch Lock	Cable/Wire	-40 °C	105 °C	Plug Housing for Socket Contact	Black	0.098 in	Free Hanging (In-Line)	3
TE Connectivity AMP Connectors 2-2834075-2	PBT Polybutylene Terephthalate	Crimp	Latch Holder	Cable/Wire	-40 °C	105 °C	Receptacle Housing for Pin Contact	Black	0.098 in	Free Hanging (In-Line)	2

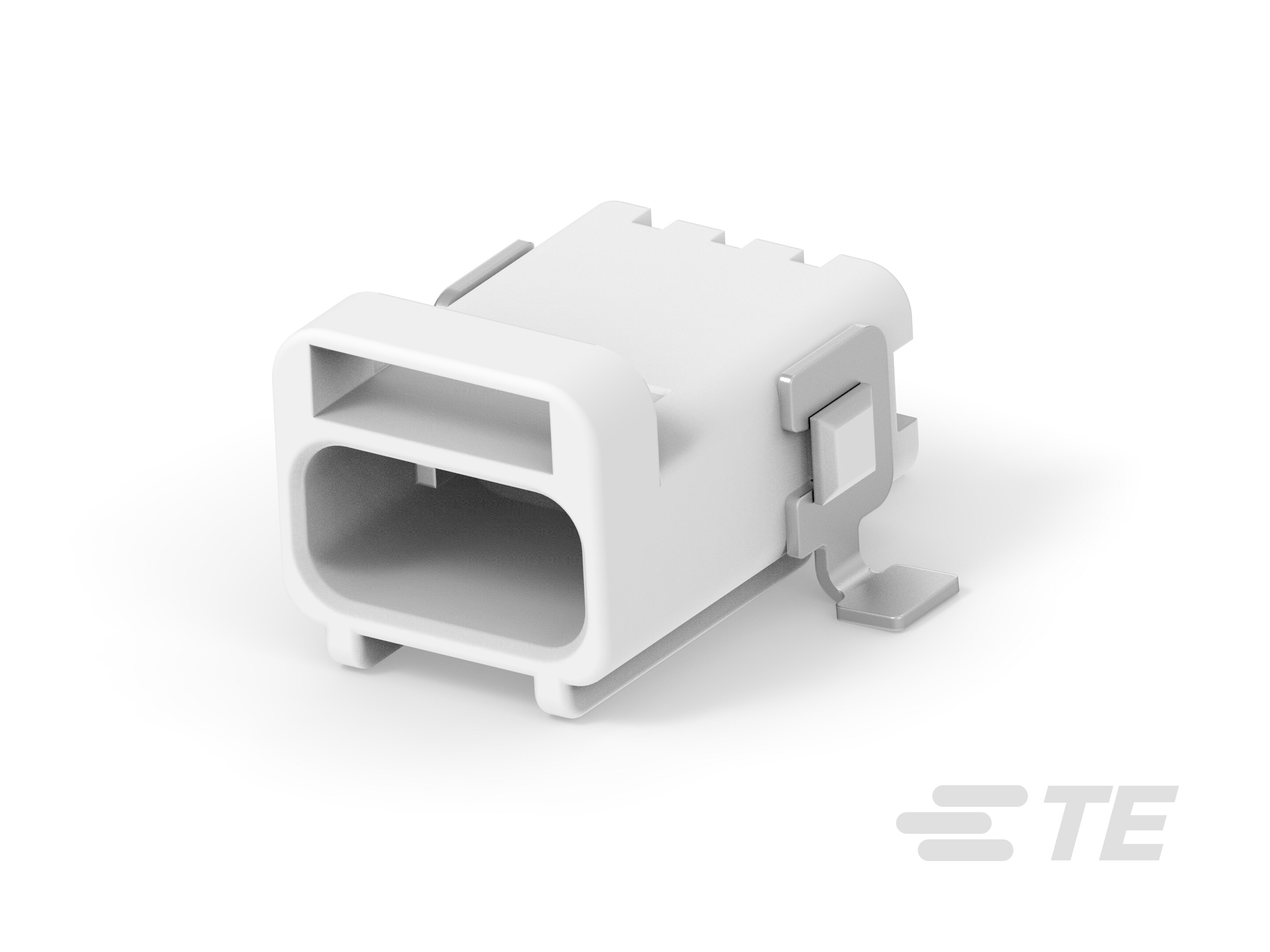

TE Connectivity AMP Connectors 1-2834236-2	LCP Liquid Crystal Polymer	Solder	Latch Holder	Board Cable/Wire	-40 °C	105 °C	Male Pins Receptacle	Natural	0.098 in	Right Angle Surface Mount	2	Copper Alloy	Tin	Dust Tight Waterproof	IP67	250 V	5 A
TE Connectivity AMP Connectors 2-2834067-3

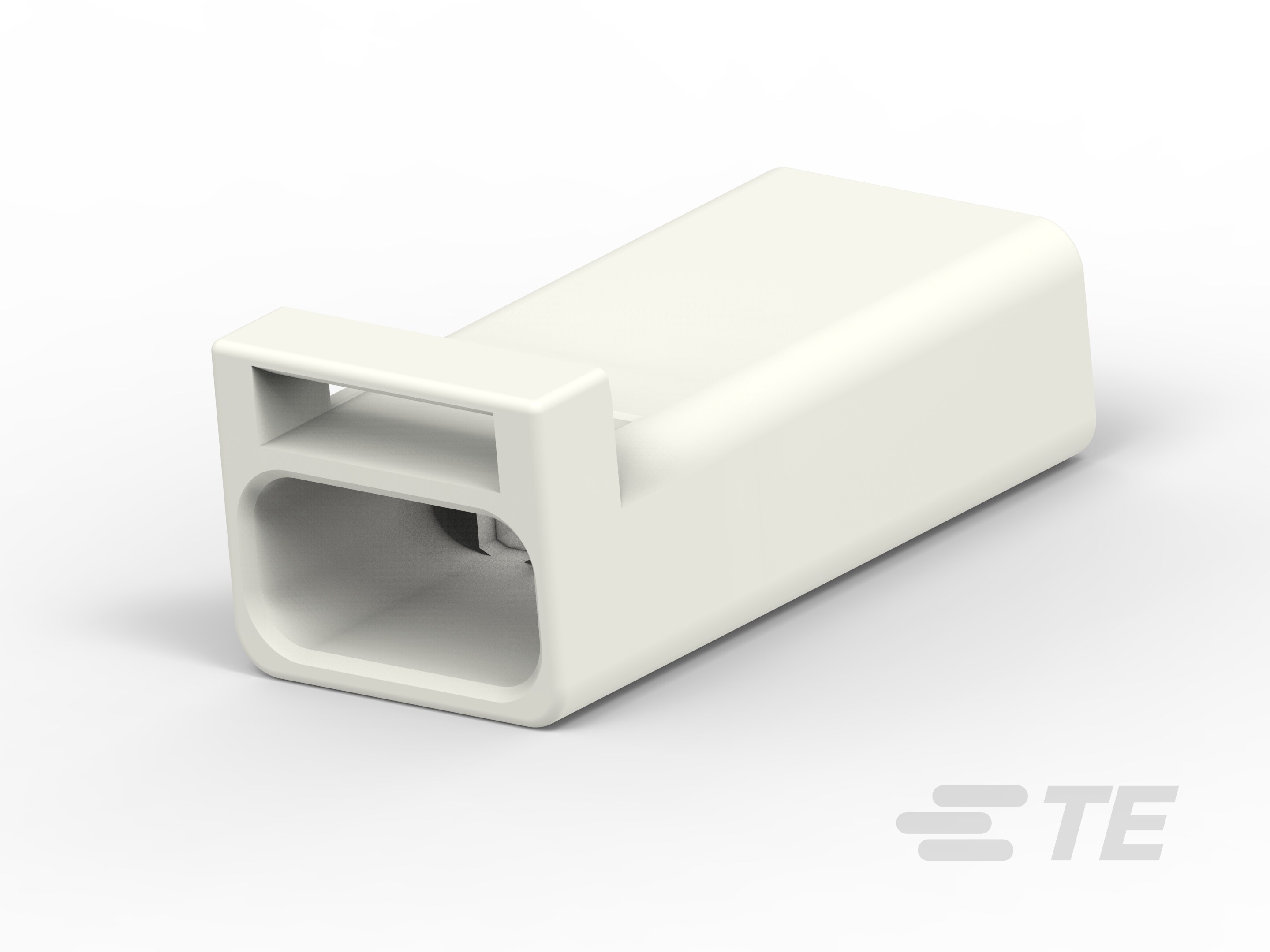

TE Connectivity AMP Connectors 1-2834075-1
TE Connectivity AMP Connectors 1-2834068-2		Crimp		Cable/Wire	-40 °C	105 °C	Contact Pin			Free Hanging (In-Line)	1	Copper Alloy	Tin					18 AWG	22 AWG
TE Connectivity AMP Connectors 3-2834074-3	Thermoplastic	Crimp	Latch Lock	Cable/Wire	-40 °C	105 °C	Plug Housing for Socket Contact	Red	0.098 in	Free Hanging (In-Line)	3
TE Connectivity AMP Connectors 2-2834068-2		Crimp		Cable/Wire	-40 °C	105 °C	Contact Pin			Free Hanging (In-Line)	1	Copper Alloy	Tin					18 AWG	22 AWG
TE Connectivity AMP Connectors 1-2834067-2		Crimp		Cable/Wire	-40 °C	105 °C	Contact Socket			Free Hanging (In-Line)	1	Copper Alloy	Tin					18 AWG	22 AWG

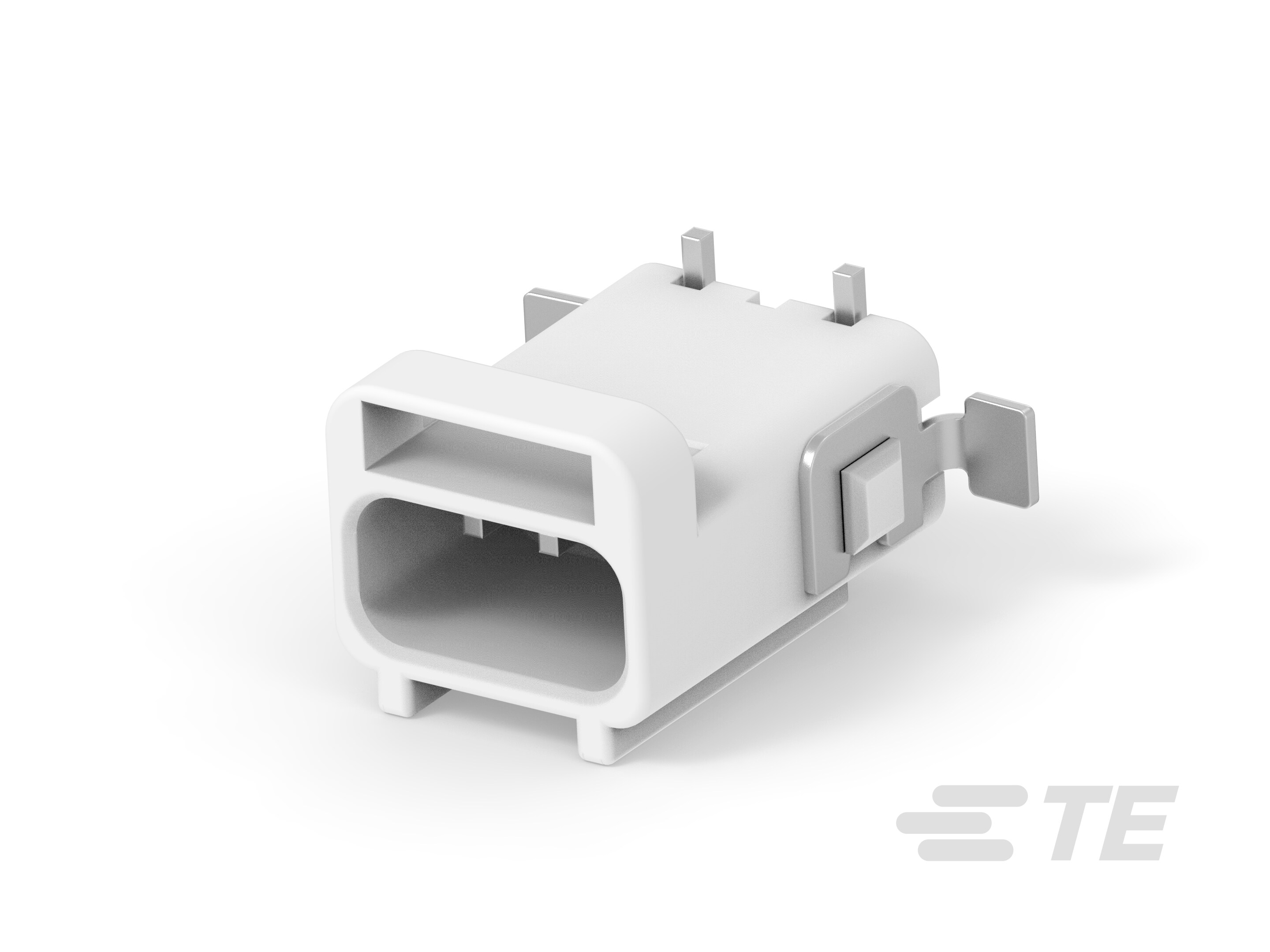

TE Connectivity AMP Connectors 1-2834235-1	LCP Liquid Crystal Polymer	Solder	Latch Holder	Board Cable/Wire	-40 °C	105 °C	Male Pins Receptacle	Natural	0.098 in	Surface Mount	3	Copper Alloy	Tin	Dust Tight Waterproof	IP67	250 V	5 A
