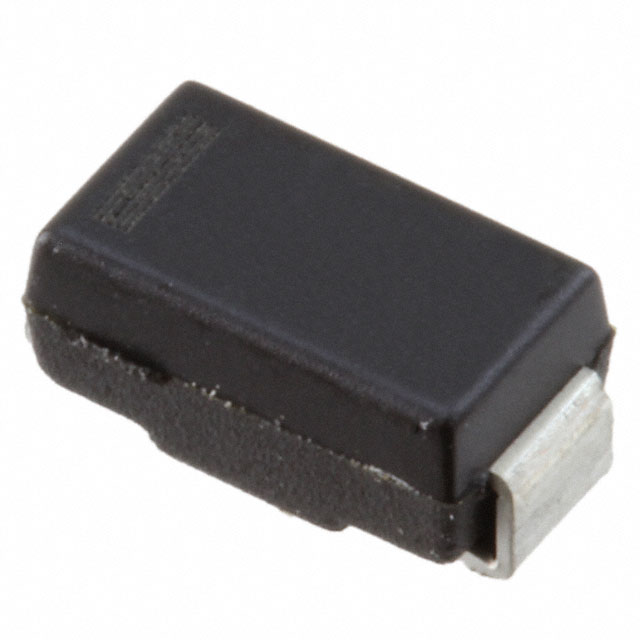

Specification	SARS05VR

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	150 °C
Operating Temperature - Junction (Min)	-40 °C
Package / Case	2-SMD, J-Lead
Package Name	SMD
Reverse Recovery Time (trr)	19 µs
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	800 V
Voltage - Forward (Vf) (Max)	1.05 V

SARS05 Series

Part	Reverse Recovery Time (trr)	Mounting Type	Package / Case	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Technology	Voltage - Forward (Vf) (Max)	Operating Temperature - Junction (Min)	Operating Temperature - Junction (Max)	Current - Reverse Leakage	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Package Name
Sanken Electric USA Inc. SARS05VR	19 µs	Surface Mount	2-SMD J-Lead	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Standard	1.05 V	-40 °C	150 °C	5 µA	1 A	800 V	SMD
Sanken Electric USA Inc. SARS05VL	19 µs	Surface Mount	2-SMD J-Lead	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Standard	1.05 V	-40 °C	150 °C	5 µA	1 A	800 V	SMD
