803-47-020-10-002000

Active

Mill-Max Manufacturing Corp.

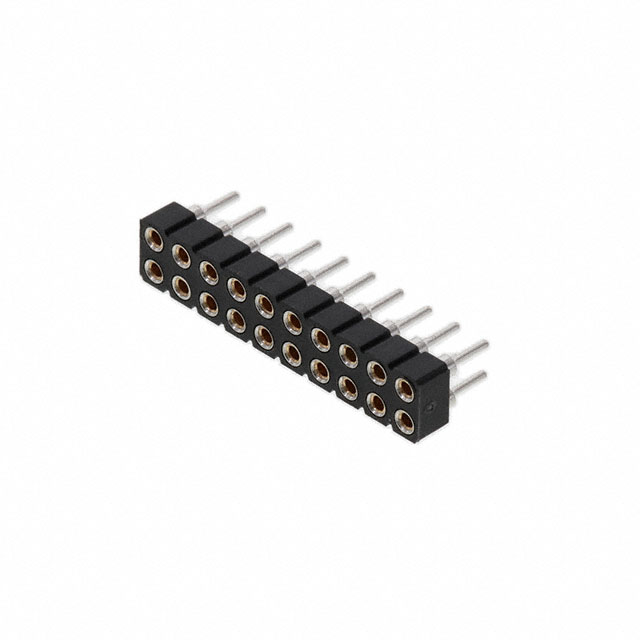

CONN RCPT 20POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

803-47-020-10-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 20POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-47-020-10-002000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

803-47 Series

Part	Contact Material	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Shape	Connector Type	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Current Rating (Amps)	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 803-47-020-10-002000	Beryllium Copper	20	Gold	All	0.165 in	4.2 mm	3.18 mm	0.125 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket
Mill-Max Manufacturing Corp. 803-47-094-10-001000	Beryllium Copper	94	Gold	All	0.276 in	7 mm			UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-47-092-20-001000	Beryllium Copper	92	Gold	All				0.126 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole Right Angle	Tin	2	Female Socket		3.2 mm
Mill-Max Manufacturing Corp. 803-47-042-10-001000	Beryllium Copper	42	Gold	All	0.276 in	7 mm			UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-47-044-20-001000	Beryllium Copper	44	Gold	All				0.126 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole Right Angle	Tin	2	Female Socket		3.2 mm
Mill-Max Manufacturing Corp. 803-47-030-20-001000	Beryllium Copper	30	Gold	All				0.126 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole Right Angle	Tin	2	Female Socket		3.2 mm
Mill-Max Manufacturing Corp. 803-47-036-10-002000	Beryllium Copper	36	Gold	All	0.165 in	4.2 mm	3.18 mm	0.125 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket
Mill-Max Manufacturing Corp. 803-47-052-20-001000	Beryllium Copper	52	Gold	All				0.126 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole Right Angle	Tin	2	Female Socket		3.2 mm
Mill-Max Manufacturing Corp. 803-47-064-10-002000	Beryllium Copper	64	Gold	All	0.165 in	4.2 mm	3.18 mm	0.125 in	UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket
Mill-Max Manufacturing Corp. 803-47-012-10-001000	Beryllium Copper	12	Gold	All	0.276 in	7 mm			UL94 V-0	Circular	Receptacle	Solder	Black	200 µin	5.08 µm	2.54 mm	0.1 in	Push-Pull	4.5 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	-55 °C	125 °C	Flash	Through Hole	Tin	2	Female Socket	0.118 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.96
		20	$ 2.69
		100	$ 2.37
		500	$ 2.01
		1000	$ 1.72
		5000	$ 1.54

Description

General part information

803-47 Series

20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
