Q-1U0140003.25M

Active

Amphenol Custom Cable

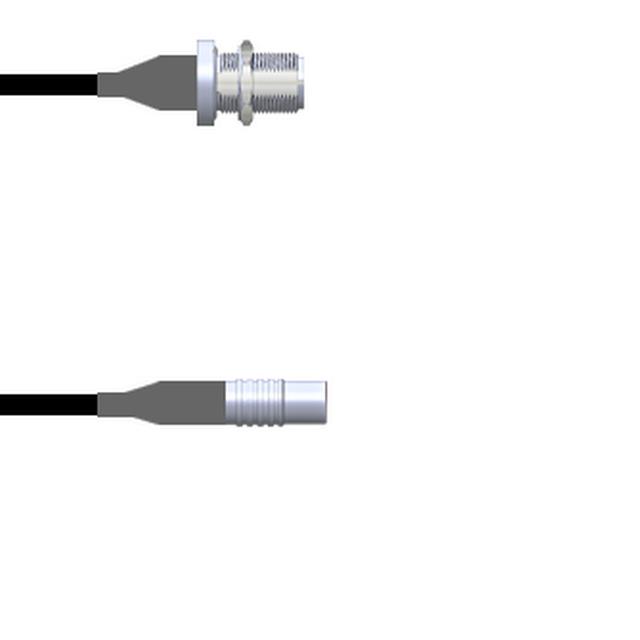

CBL ASSY MCX-NTYPE JK-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U0140003.25M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JK-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0140003.25M

1st Connector	MCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1U0140 Series

Part	1st Contact Gender	2nd Connector Mounting Type	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	Color	Style	1st Connector	Length	Length	Length	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Feature	Cable Type	Features	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1U0140003001M	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack	1 m	3.3 ft	39.4 in	Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded
Amphenol Custom Cable Q-1U0140003002M	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack	2 m	6.6 ft	78.7 in	Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded
Amphenol Custom Cable Q-1U0140003006i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack	152.4 mm		6 in	Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded
Amphenol Custom Cable Q-1U0140005036i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Copper	MCX to N-Type	MCX Jack	91.44 cm		36 in	Female	50 Ohms	Bulkhead - Front Side Nut	RG-316	Shielded
Amphenol Custom Cable Q-1U0140003.25M	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack				Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-1U0140005072i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Copper	MCX to N-Type	MCX Jack	1.8 m	6 ft	72 in	Female	50 Ohms	Bulkhead - Front Side Nut	RG-316	Shielded
Amphenol Custom Cable Q-1U0140003009i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack	228.6 mm		9 "	Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded
Amphenol Custom Cable Q-1U0140003024i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack	609.6 mm		24 "	Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded
Amphenol Custom Cable Q-1U0140005060i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Copper	MCX to N-Type	MCX Jack	1.5 m	5 ft	5 '	Female	50 Ohms	Bulkhead - Front Side Nut	RG-316	Shielded
Amphenol Custom Cable Q-1U0140003018i	Female	Panel Mount	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Black	MCX to N-Type	MCX Jack				Female	50 Ohms	Bulkhead - Front Side Nut	RG-174	Shielded		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 137.77
		25	$ 135.16
		50	$ 132.56
		100	$ 129.95
		250	$ 127.35

Description

General part information

Q-1U0140 Series

Cable Assembly Coaxial MCX to N-Type RG-174 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
