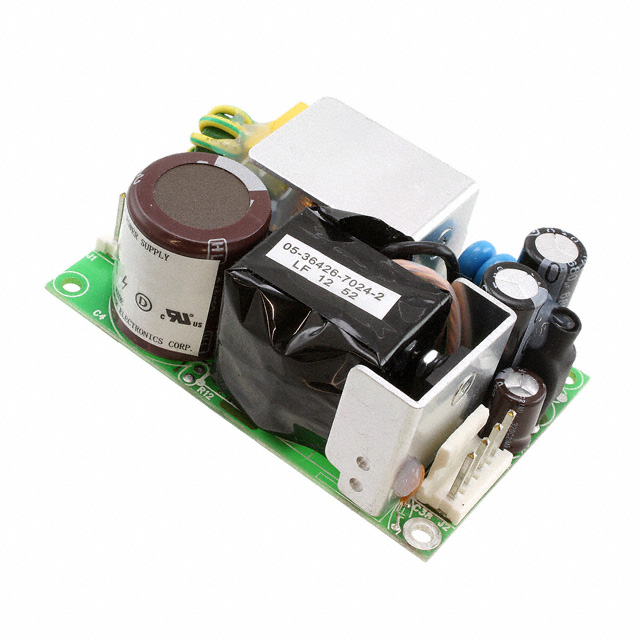

GB60S12K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 55W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 55W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 12V 55W

Part	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Minimum Load Required	Power (Watts)	Number of Outputs	Voltage - Output 1	Approval Agency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Mounting Type	Features	Type
SL POWER / Advanced Energy GB60S12K	4000 V	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "		55 W	1	12 V	CE	ITE (Commercial)	-10 °C	70 °C	4.58 A	80 VAC	270 VAC	83 %	Chassis Mount	Universal Input	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 80 ~ 270 VAC Input
