0700-0-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.

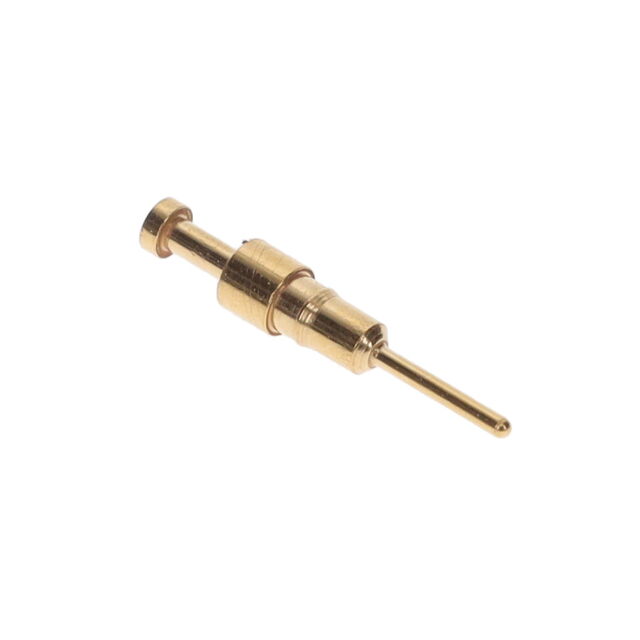

TERM TURRET PIN L=4.01MM GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0700-0-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET PIN L=4.01MM GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0700-0-00-34-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.053 in |
| Diameter - Turret Head [diameter] | 1.35 mm |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.158 in |
| Length - Above Board [x] | 4.01 mm |
| Length - Below Flange [x] | 0.259 in |
| Length - Below Flange [x] | 6.58 mm |
| Length - Overall [x] | 10.59 mm |
| Length - Overall [x] | 0.417 " |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.86 | |||
| 3000 | $ 0.80 | |||
Description
General part information
0700-0 Series
Terminal Turret Connector Double End, Pin 0.158" (4.01mm) Gold
