031-5486-10RFX

Active

Amphenol RF

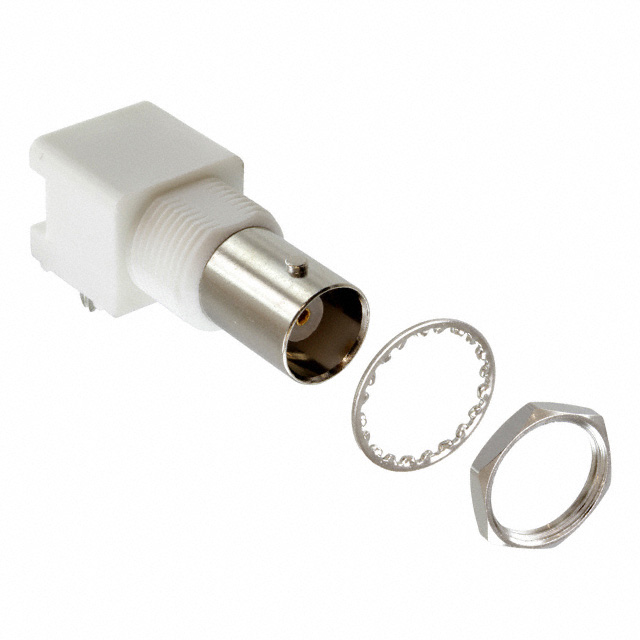

CONN BNC 0HZ TO 1GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

031-5486-10RFX

Active

Amphenol RF

CONN BNC 0HZ TO 1GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-5486-10RFX

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Features	Board Lock, Isolated
Frequency - Max [Max]	1 GHz
Housing Color	White, Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

031-54 Series

Part	Mating Cycles	Fastening Type	Center Contact Material	Mounting Type	Connector Type	Body Finish	Connector Style	Voltage Rating	Features	Shield Termination	Number of Ports	Frequency - Max [Max]	Impedance	Contact Termination	Body Material	Housing Color	Dielectric Material	Mounting Feature	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Includes
Amphenol RF 031-5431-1010	500	Bayonet Lock	Phosphor Bronze	Panel Mount Right Angle Through Hole	Female Socket Jack	Nickel	BNC	500 V	Board Lock Isolated	Solder	1	1 GHz	50 Ohms	Solder	Zinc Die Cast	Silver White	Polypropylene (PP)	Bulkhead - Front Side Nut	0.2 dB	85 °C	-55 °C	Gold
Amphenol RF 031-5486-10RFX	500	Bayonet Lock	Phosphor Bronze	Panel Mount Right Angle Through Hole	Female Socket Jack	Nickel	BNC	500 V	Board Lock Isolated	Solder	1	1 GHz	50 Ohms	Solder	Zinc Die Cast	Silver White	Polypropylene (PP)	Bulkhead - Front Side Nut	0.2 dB	85 °C	-55 °C	Gold	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 031-5493	500	Bayonet Lock	Phosphor Bronze	Panel Mount Through Hole	Female Socket Jack	Nickel	BNC	500 V	Board Guide Isolated	Solder	1	1 GHz	50 Ohms	Solder	Zinc Die Cast	Silver White	Polypropylene (PP)	Bulkhead - Front Side Nut	0.2 dB	85 °C	-55 °C	Gold
Amphenol RF 031-5431-10RFX	500	Bayonet Lock	Phosphor Bronze	Panel Mount Right Angle Through Hole	Female Socket Jack	Nickel	BNC	500 V	Board Lock Isolated	Solder	1	1 GHz	50 Ohms	Solder	Zinc Die Cast	Silver White	Polypropylene (PP)	Bulkhead - Front Side Nut	0.2 dB	85 °C	-55 °C	Gold	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 031-5493-1010	500	Bayonet Lock	Phosphor Bronze	Panel Mount Through Hole	Female Socket Jack	Nickel	BNC	500 V	Board Lock Isolated	Solder	1	1 GHz	50 Ohms	Solder	Zinc Die Cast	Silver White	Polypropylene (PP)	Bulkhead - Front Side Nut	0.2 dB	85 °C	-55 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.28
		10	$ 6.58
		25	$ 6.21
		40	$ 6.06
		100	$ 5.76
		300	$ 5.15
		500	$ 4.85
		1000	$ 4.24
		2400	$ 4.03

Description

General part information

031-54 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
