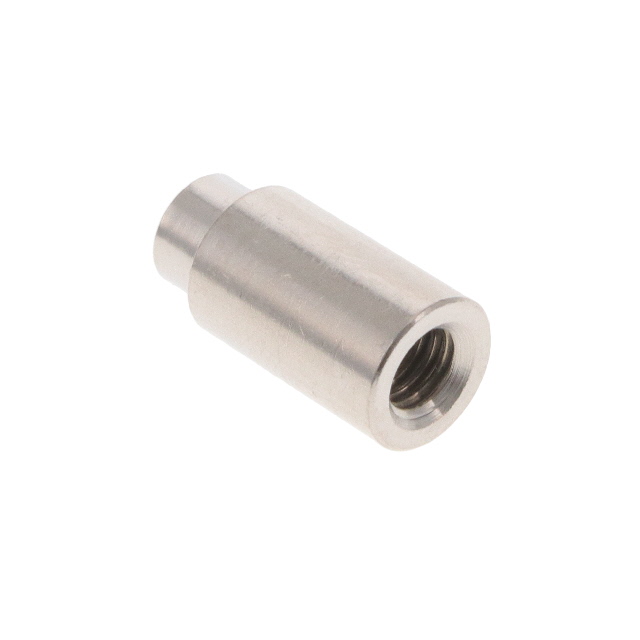

3082-C-1032-B-5
ActiveRAF Electronic Hardware
5/16 RD X 1/2 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
3082-C-1032-B-5
ActiveRAF Electronic Hardware
5/16 RD X 1/2 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3082-C-1032-B-5 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Diameter - Outside [diameter] | 0.313 in |
| Diameter - Outside [diameter] | 7.94 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.635 in |
| Length - Overall [x] | 16.13 mm |
| Material | Brass |
| Plating | Nickel |
| Screw, Thread Size | #10-32 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 5 | $ 1.78 | |||
| 10 | $ 1.60 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.21 | |||
| 500 | $ 1.18 | |||
Description
General part information
3082-C Series
Round Standoff Threaded #10-32 Brass 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
No documents available
