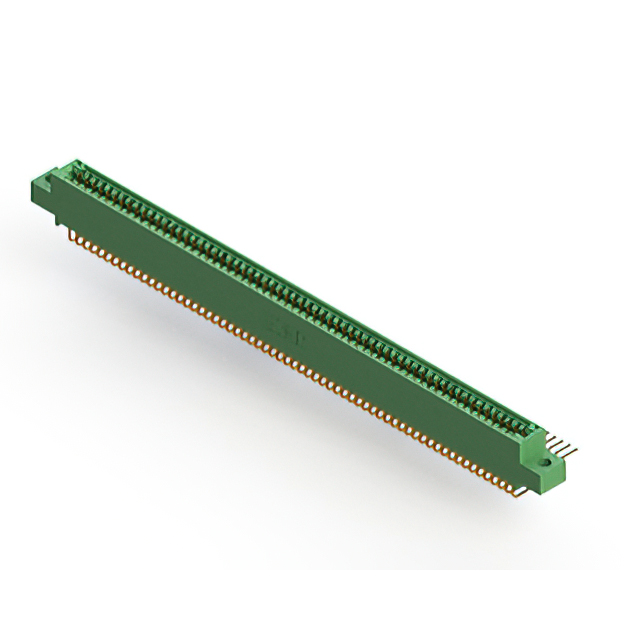

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 126 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-126-559-504
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 126 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-126-559-504 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 126 |
| Number of Positions/Bay/Row [custom] | 63 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-126 Series
...
| Part | Read Out | Contact Material | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Card Type | Pitch [x] | Pitch [x] | Material - Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Contact Type | Termination | Number of Positions | Mounting Type | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | M3 Threaded Insert Top Mount Opening | Cantilever | Wire Wrap | 126 | Through Hole | Green | |||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | M3 Threaded Insert Top Mount Opening | Cantilever | Solder | 126 | Board Edge Straddle Mount | Green | Card Extender | ||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Solder | 126 | Board Edge Straddle Mount | Green | Card Extender | ||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Solder | 126 | Through Hole | Green | Card Guides | ||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Solder | 126 | Through Hole Right Angle | Green | Card Guides | ||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Wire Wrap | 126 | Through Hole | Green | Card Guides | ||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | Floating Bobbin Flush Mount | Cantilever | Solder Eyelet(s) | 126 | Through Hole | Green | 0.116 in | 2.95 mm | |
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 126 | Through Hole | Green | |||
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | Top Mount Opening Unthreaded | Cantilever | Solder | 126 | Through Hole Right Angle | Green | 0.156 in | 3.96 mm | |
EDAC Inc. | Dual | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Female | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 2 | 63 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Solder | 126 | Through Hole | Green | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-126 Series
126 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
