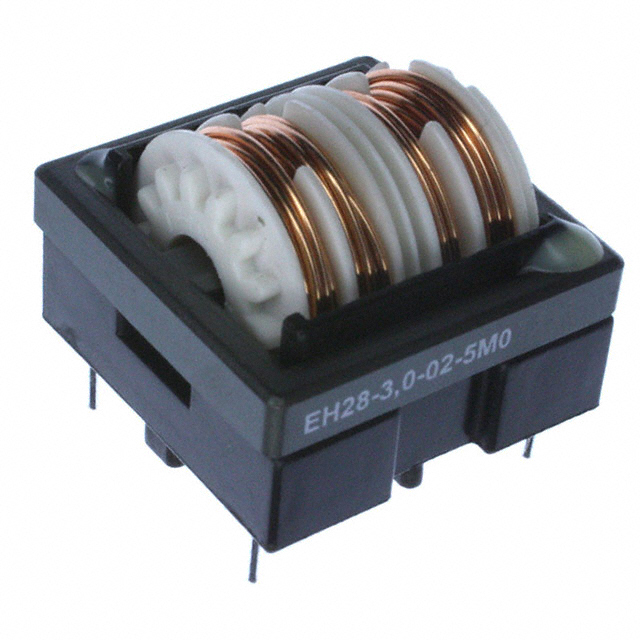

EH28-3.0-02-5M0

Technical Specifications

Parameters and characteristics for this part

Specification	EH28-3.0-02-5M0

Current Rating (Max) [Max]	3 A
DC Resistance (DCR) (Max)	79 mOhm
Filter Type	Power Line
Height (Max)	23.9 mm
Height (Max) [Max]	0.941 in
Inductance @ Frequency	5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	1.102 in
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.102 in
Voltage Rating - AC	250 V

Part	Package / Case	Package / Case	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	DC Resistance (DCR) (Max)	Filter Type	Inductance @ Frequency	Operating Temperature [custom]	Mounting Type	Number of Lines	Height (Max)	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection EH28-3.0-02-5M0	Horizontal	4 Lead	3 A	28 mm	1.102 in	28 mm	1.102 in	250 V	79 mOhm	Power Line	5 mH	-25 °C 100 °C	Through Hole	2	23.9 mm	0.941 in
TE Connectivity Raychem Cable Protection EH28-3.0-02-9M0-X	Horizontal	4 Lead	3 A	28 mm	1.102 in	28 mm	1.102 in	250 V		Power Line	9 mH 400 Hz	-25 °C 100 °C	Through Hole	2	23.9 mm	0.941 in	115 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

250 VDC, 3 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner EH/EV-Series, EMC Chokes
