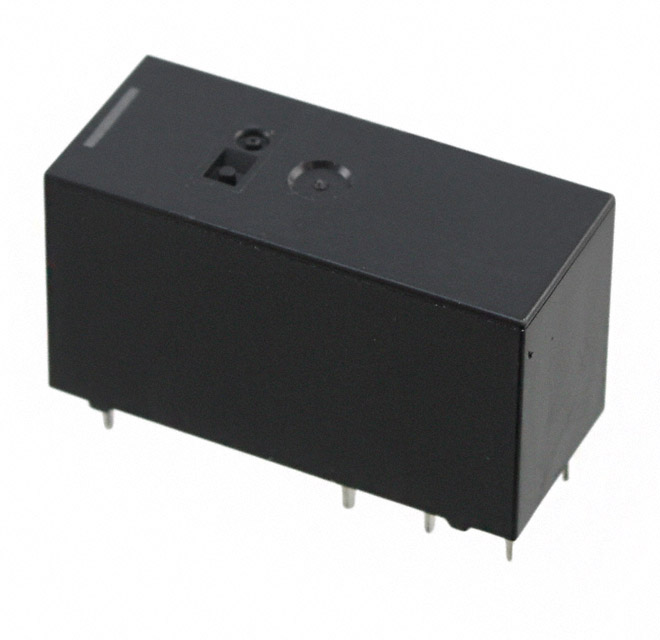

ALZ11B06

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPDT 16A 6V

Deep-Dive with AI

DocumentsStandards Chart How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALZ11B06

Approval Agency	cURus, VDE
Coil Current	66.7 mA
Coil Insulation	Class B
Coil Resistance	90 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Load - Max Switching	7040 VA
Mounting Type	Through Hole
Must Operate Voltage	4.2 VDC
Must Release Voltage	0.6 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	440 VAC
Termination Style	PC Pin

ALZ11B Series

Part	Contact Rating (Current)	Contact Material	Coil Current	Termination Style	Coil Resistance	Coil Insulation	Coil Type	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Voltage	Contact Form	Must Release Voltage	Approval Agency	Must Operate Voltage	Mounting Type	Operate Time	Load - Max Switching	Release Time	Switching Voltage
Panasonic Electric Works ALZ11B24	16 A	Silver Tin Oxide (AgSnO)	16.7 mA	PC Pin	1440 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	24 VDC	SPDT (1 Form C)	2.4 VDC	cURus VDE	16.8 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B24T
Panasonic Electric Works ALZ11B48W	16 A	Silver Tin Oxide (AgSnO)	8.3 mA	PC Pin	5.76 kOhms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	48 VDC	SPDT (1 Form C)	4.8 VDC	cURus VDE	33.6 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B06	16 A	Silver Tin Oxide (AgSnO)	66.7 mA	PC Pin	90 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose		SPDT (1 Form C)	0.6 VDC	cURus VDE	4.2 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B18W	16 A	Silver Tin Oxide (AgSnO)	22.2 mA	PC Pin	810 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	18 VDC	SPDT (1 Form C)	1.8 VDC	cURus VDE	12.6 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B09W	16 A	Silver Tin Oxide (AgSnO)	44.4 mA	PC Pin	203 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	9 VDC	SPDT (1 Form C)	0.9 VDC	cURus VDE	6.3 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B05	16 A	Silver Tin Oxide (AgSnO)	80 mA	PC Pin	63 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	5 VDC	SPDT (1 Form C)	0.5 VDC	cURus VDE	3.5 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B12W	16 A	Silver Tin Oxide (AgSnO)	33.3 mA	PC Pin	360 Ohms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	12 VDC	SPDT (1 Form C)	1.2 VDC	cURus VDE	8.4 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
Panasonic Electric Works ALZ11B48	16 A	Silver Tin Oxide (AgSnO)	8.3 mA	PC Pin	5.76 kOhms	Class B	Non Latching	Sealed - Flux Protection	85 °C	-40 °C	General Purpose	48 VDC	SPDT (1 Form C)	4.8 VDC	cURus VDE	33.6 VDC	Through Hole	15 ms	7040 VA	5 ms	440 VAC
