WLP75-1002-FR

Active

EOS Power

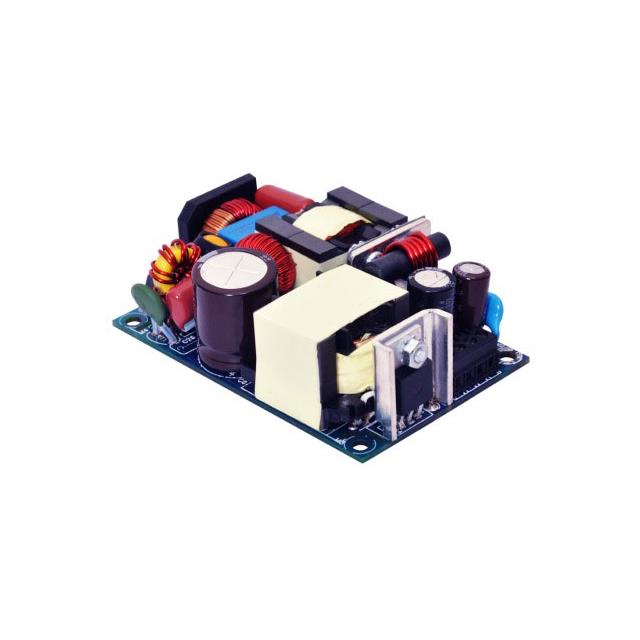

AC/DC POWER SUPPLY 15V 5A CUSTOM

Deep-Dive with AI

Search across all available documentation for this part.

WLP75-1002-FR

Active

EOS Power

AC/DC POWER SUPPLY 15V 5A CUSTOM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.28

Description

General part information

WLP75 Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WLP75-1002-FR	WLP75 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, NEMKO, cUL, CE, CB, CCC	UL, NEMKO, cUL, CE, CB, CCC
Current - Output 1	5 A	1.29 - 6.25 A
Efficiency	90 %	90 - 93 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	75 W	75 W
Size / Dimension [x]	76.2 mm	76.2 mm
Size / Dimension [x]	3 "	3 "
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	25.4 mm	25.4 mm
Size / Dimension [z]	1 "	1 "
Standard Number	60950-1	62368-1, 60950-1
Type	Open Frame	Open Frame
Voltage - Input	390 VDC	390 VDC
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	4000 V	3000 - 4000 V
Voltage - Output 1	15 V	12 - 48 V

WLP75 Series

AC-DC POWER MODULES ROHS

Part	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Power (Watts)	Voltage - Output 1	Mounting Type	Voltage - Input [Max]	Voltage - Input	Voltage - Input [Min]	Applications	Standard Number	Approval Agency	Efficiency	Current - Output 1	Voltage - Isolation
EOS Power LFWLP75-1005	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	30 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	91 %	2.5 A	3000 V
EOS Power LFWLP75-1302	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	15 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	90 %	5 A	3000 V
EOS Power WLP75-1003-II	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	24 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	91 %	3.12 A	3000 V
EOS Power LFWLP75-1304	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	48 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	93 %	1.56 A	3000 V
EOS Power WLP75-1002-FR	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	15 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	60950-1	CB, CCC, CE, cUL, NEMKO, UL	90 %	5 A	4000 V
EOS Power LFWLP75-1006	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W		Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	93 %	1.29 A	3000 V
EOS Power LFWLP75-1305	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	30 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	91 %	2.5 A	3000 V
EOS Power LFWLP75-1002	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	15 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	90 %	5 A	3000 V
EOS Power WLP75-1303-II	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W	24 V	Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	91 %	3.12 A	3000 V
EOS Power WLP75-1306-II	1	Open Frame	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Adjustable Output, PFC, Standby Output, Universal Input	75 W		Chassis Mount	264 VAC	390 VDC	85 VAC	ITE (Commercial)	62368-1	CB, CCC, CE, cUL, NEMKO, UL	93 %	1.29 A	3000 V
