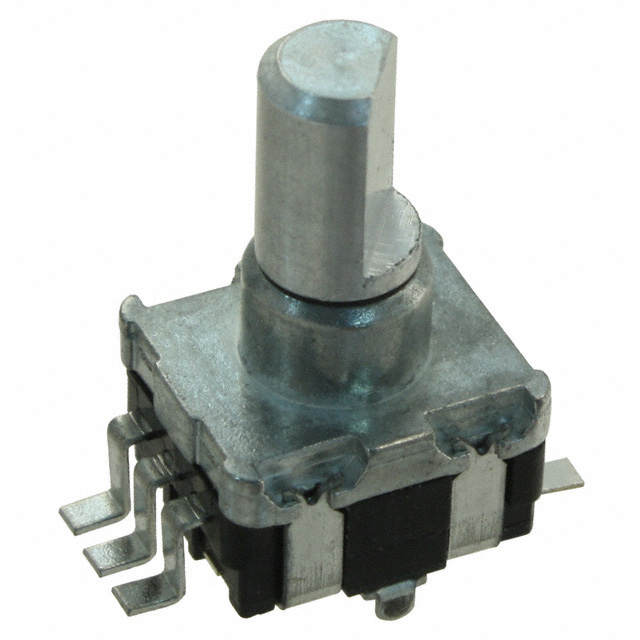

PRS11S-N20F-103B1

Obsolete

Bourns Inc.

POT 10K OHM 1/20W CARBON LINEAR

Search across all available documentation for this part.

Obsolete

Bourns Inc.

POT 10K OHM 1/20W CARBON LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Actuator Type	Resistive Material	Number of Turns	Actuator Length [z]	Actuator Length [z]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Taper	Number of Gangs	Resistance (Ohms)	Power (Watts)	Power (Watts)	Mounting Type	Built in Switch	Rotation	Size - Body [y]	Size - Body [x]	Size - Body [x]	Size - Body [y]	Termination Style	Tolerance	Resistance (Ohms)	Power (Watts)
Bourns Inc. PRS11S-N20F-504B1	Top Adjustment	Flatted	Carbon	1	20 mm	0.787 in	0.236 in	6 mm	Linear	1	500 kOhms	0.025 W	0.025 W	Surface Mount		300 ░	0.461 in	0.512 in	13 mm	11.7 mm	Gull Wing	30 %
Bourns Inc. PRS11S-N20F-103B1	Top Adjustment	Flatted	Carbon	1	20 mm	0.787 in	0.236 in	6 mm	Linear	1		0.05 W		Surface Mount		300 ░	0.461 in	0.512 in	13 mm	11.7 mm	Gull Wing	20 %	10k	50 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10k Ohm 1 Gang Linear Surface Mount Potentiometer None 1.0 Kierros Carbon 0.05W, 1/20W Gull Wing
