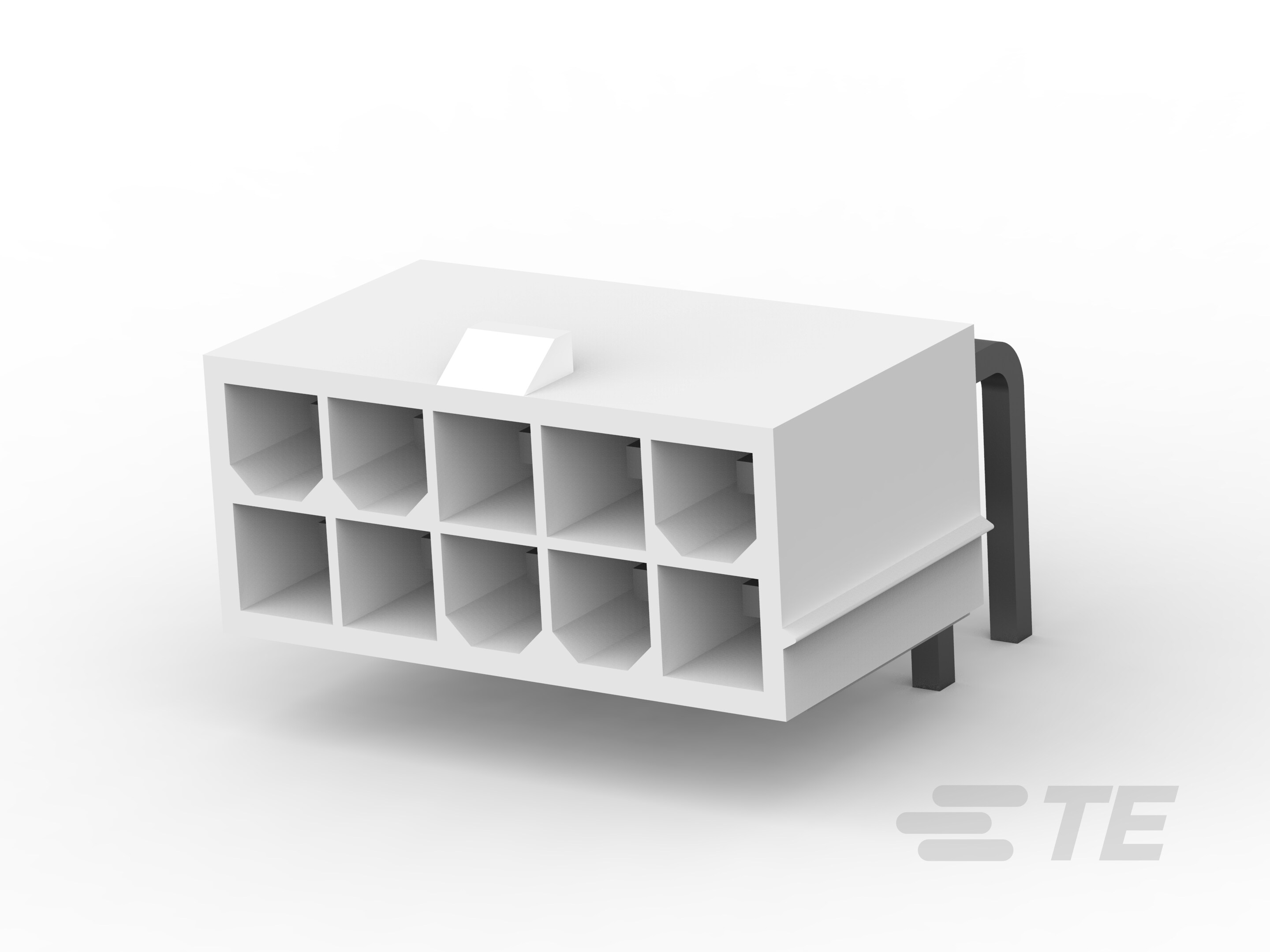

Specification	1-1586041-0

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Length - Post	0.142 in
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V

VAL-U-LOK Series

Part	Number of Positions Loaded	Contact Finish - Post	Style	Contact Material	Contact Length - Post	Contact Finish Thickness - Mating	Number of Positions	Number of Rows	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Insulation Color	Termination	Shrouding	Voltage Rating	Contact Finish - Mating	Current Rating	Mounting Type	Row Spacing - Mating	Contact Type	Fastening Type	Features	Insulation Material	Contact Shape	Insulation Height	Connector Type	Contact Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pin or Socket	Contact Finish	Pitch	Color	Row Spacing	Note	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 1-1586587-8	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	39.4 µin	18	2	0.165 in	-40 °C	105 °C	UL94 V-0	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole	0.165 in	Male Pin	Latch Holder	Board Lock	Nylon Polyamide (PA)	Square	0.555 in	Header
TE Connectivity AMP Connectors 2029056-4	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	80 µin	4	1	0.165 in	-40 °C	105 °C	UL94 V-0	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole		Male Pin	Locking Ramp	Board Lock	Nylon Polyamide (PA)	Square	0.504 in	Header
TE Connectivity AMP Connectors 1586314-3																												Crimp	18 AWG	22 AWG	Pin	Tin
TE Connectivity AMP Connectors 1-1969604-6							16	2		-40 °C	105 °C								Free Hanging (In-Line)		Male Pin	Locking Ramp		Nylon Polyamide (PA)			Plug	Crimp					0.165 in	Natural	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1586018-4							4	2		-40 °C	105 °C								Panel Mount Snap-In		Male Pin	Locking Ramp		Nylon Polyamide (PA)			Plug	Crimp					0.165 in	Natural	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1586586-4	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	39.4 µin	4	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole	0.165 in	Male Pin	Latch Holder	Board Lock	Nylon Polyamide (PA)	Square	0.555 in	Header										39.4 µin	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1586041-4	All	Tin	Board Cable/Wire	Brass Alloy	0.142 in	80 µin	4	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Right Angle Through Hole	0.165 in	Male Pin	Locking Ramp		Nylon Polyamide (PA)	Square	0.402 in	Header										80 µin	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-794954-4							14	2		-40 °C	105 °C								Free Hanging (In-Line)		Female Socket	Latch Lock		Nylon Polyamide (PA)			Receptacle	Crimp					0.165 in	Natural	0.165 in
TE Connectivity AMP Connectors 1-2029097-2							12	2		-40 °C	105 °C								Free Hanging (In-Line)		Female Socket	Latch Lock		Nylon Polyamide (PA)			Receptacle	Crimp					0.165 in	Blue	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1-1586041-8	All	Tin	Board Cable/Wire	Brass Alloy	0.142 in	80 µin	18	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Right Angle Through Hole	0.165 in	Male Pin	Locking Ramp		Nylon Polyamide (PA)	Square	0.402 in	Header										80 µin	General Purpose Industrial Lighting
