VAL-U-LOK Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS 18 POS HDR 94V-0 W/DRAIN HOLE

Part	Number of Positions Loaded	Contact Finish - Post	Style	Contact Material	Contact Length - Post	Contact Finish Thickness - Mating	Number of Positions	Number of Rows	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Insulation Color	Termination	Shrouding	Voltage Rating	Contact Finish - Mating	Current Rating	Mounting Type	Row Spacing - Mating	Contact Type	Fastening Type	Features	Insulation Material	Contact Shape	Insulation Height	Connector Type	Contact Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pin or Socket	Contact Finish	Pitch	Color	Row Spacing	Note	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 1-1586587-8	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	39.4 µin	18	2	0.165 in	-40 °C	105 °C	UL94 V-0	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole	0.165 in	Male Pin	Latch Holder	Board Lock	Nylon Polyamide (PA)	Square	0.555 in	Header
TE Connectivity AMP Connectors 2029056-4	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	80 µin	4	1	0.165 in	-40 °C	105 °C	UL94 V-0	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole		Male Pin	Locking Ramp	Board Lock	Nylon Polyamide (PA)	Square	0.504 in	Header
TE Connectivity AMP Connectors 1586314-3																												Crimp	18 AWG	22 AWG	Pin	Tin

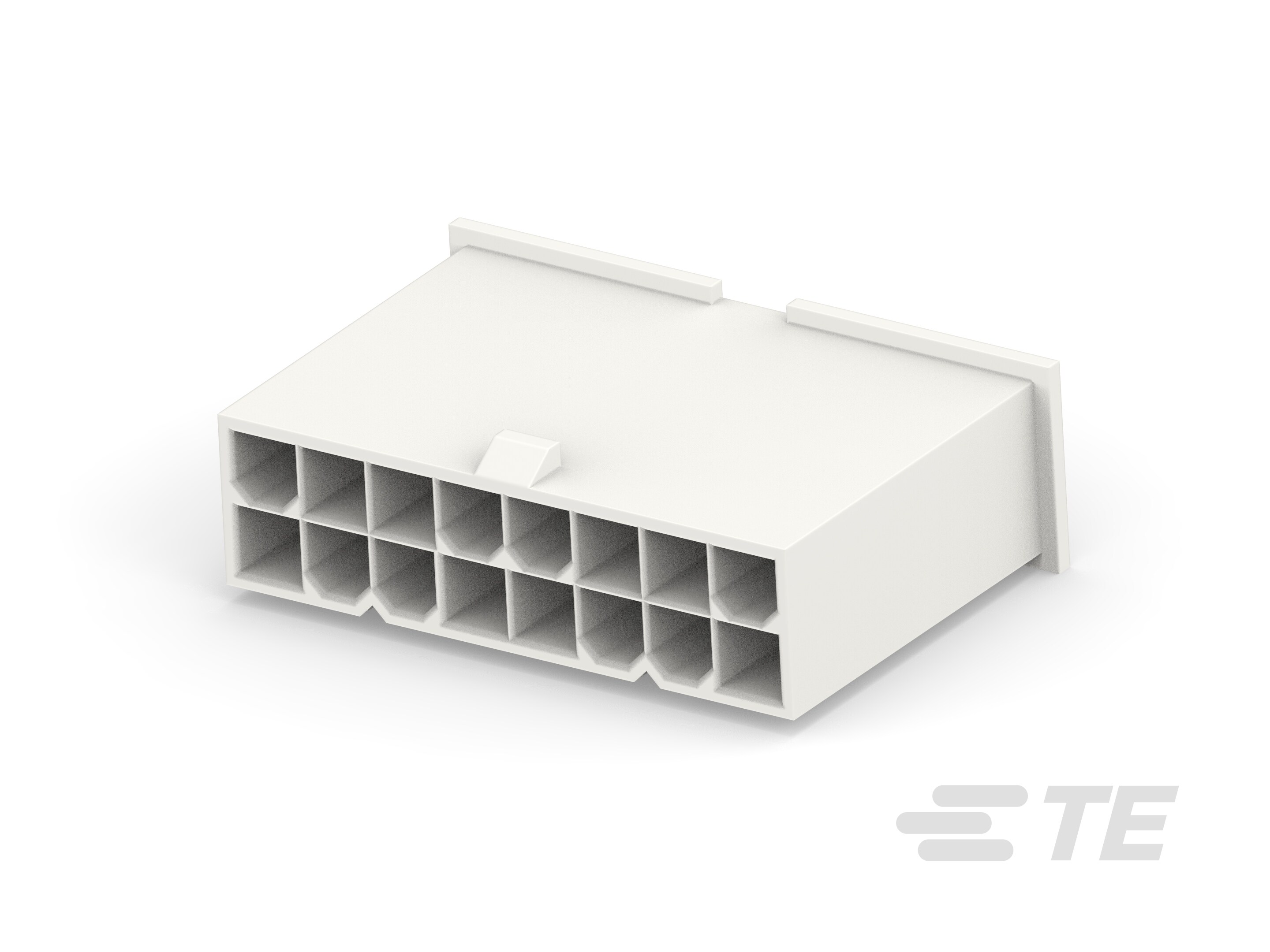

TE Connectivity AMP Connectors 1-1969604-6							16	2		-40 °C	105 °C								Free Hanging (In-Line)		Male Pin	Locking Ramp		Nylon Polyamide (PA)			Plug	Crimp					0.165 in	Natural	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1586018-4							4	2		-40 °C	105 °C								Panel Mount Snap-In		Male Pin	Locking Ramp		Nylon Polyamide (PA)			Plug	Crimp					0.165 in	Natural	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1586586-4	All	Tin	Board Cable/Wire	Brass Alloy	0.138 in	39.4 µin	4	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Through Hole	0.165 in	Male Pin	Latch Holder	Board Lock	Nylon Polyamide (PA)	Square	0.555 in	Header										39.4 µin	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1586041-4	All	Tin	Board Cable/Wire	Brass Alloy	0.142 in	80 µin	4	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Right Angle Through Hole	0.165 in	Male Pin	Locking Ramp		Nylon Polyamide (PA)	Square	0.402 in	Header										80 µin	General Purpose Industrial Lighting

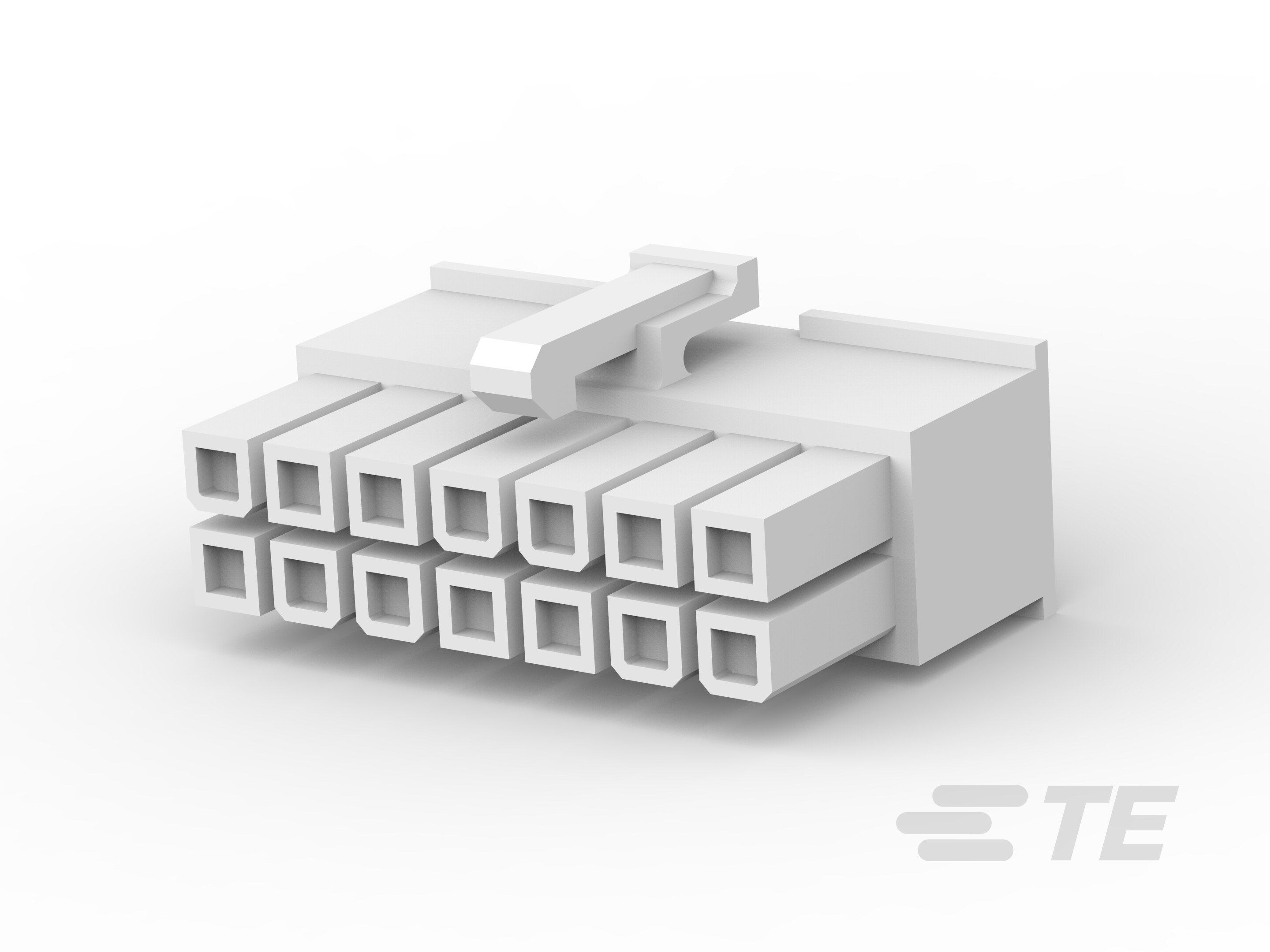

TE Connectivity AMP Connectors 1-794954-4							14	2		-40 °C	105 °C								Free Hanging (In-Line)		Female Socket	Latch Lock		Nylon Polyamide (PA)			Receptacle	Crimp					0.165 in	Natural	0.165 in
TE Connectivity AMP Connectors 1-2029097-2							12	2		-40 °C	105 °C								Free Hanging (In-Line)		Female Socket	Latch Lock		Nylon Polyamide (PA)			Receptacle	Crimp					0.165 in	Blue	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1-1586041-8	All	Tin	Board Cable/Wire	Brass Alloy	0.142 in	80 µin	18	2	0.165 in	-40 °C	105 °C	UL94 V-2	Natural	Solder	Shrouded - 4 Wall	600 V	Tin	9 A	Right Angle Through Hole	0.165 in	Male Pin	Locking Ramp		Nylon Polyamide (PA)	Square	0.402 in	Header										80 µin	General Purpose Industrial Lighting
