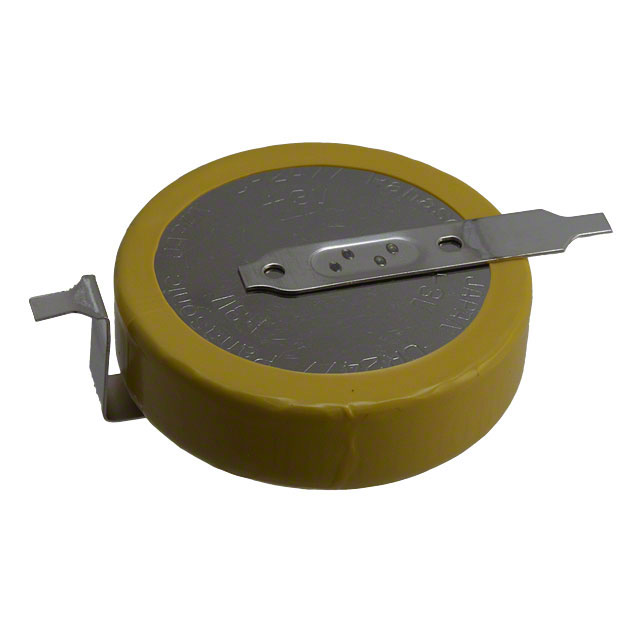

CR-2477/F2N
ActivePanasonic Industrial Automation Sales
BATTERY LITH COIN 3V CELL W/TABS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR-2477/F2N |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 24.5 mm |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 1 Ah |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.96 " |
| Size / Dimension [diameter] | 24.5 mm |
| Size / Dimension [z] | 7.7 mm |
| Size / Dimension [z] | 0.3 " |
| Termination Style | SMD (SMT) Tab |
| Voltage - Rated | 3 VDC |
| Weight | 10.5 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.45 | |
| 12 | $ 3.69 | |||
| 36 | $ 3.42 | |||
| 60 | $ 3.23 | |||
| 120 | $ 3.06 | |||
| 360 | $ 2.86 | |||
| 600 | $ 2.71 | |||
| 1080 | $ 2.55 | |||
| 2520 | $ 2.52 | |||
Description
General part information
CR-2477 Series
Coin, 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
