20020013-H021B01LF

Active

AMPHENOL ANYTEK

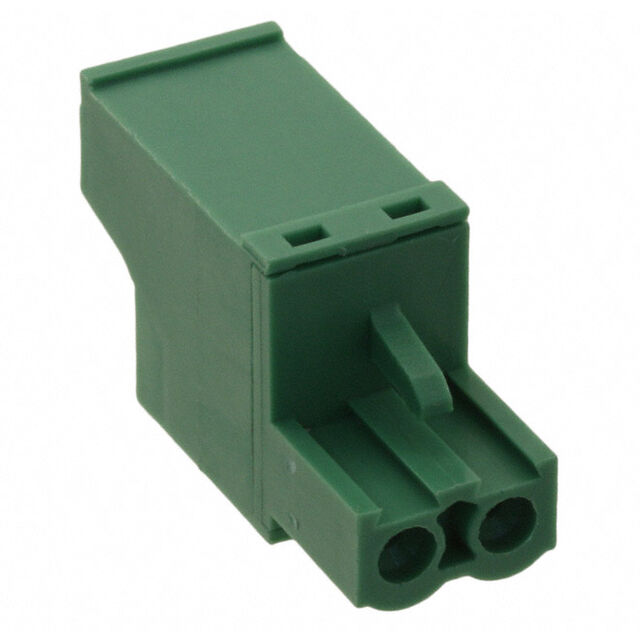

TERM BLOCK PLUG 2POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20020013-H021B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 2POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020013-H021B01LF	20020013 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.083 in	1.083 in
Insulation Height	27.51 mm	27.51 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 10
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	2	2 - 10
Screw Size	M2.5	M2.5
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	1 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020013 Series

TERM BLOCK PLUG 10POS 5.08MM

Part	Number of Levels	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch [x]	Pitch [x]	Voltage - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Mating Finish	Torque - Screw	Torque - Screw	Insulation Height	Insulation Height	Type	Number of Positions	Termination Style	Wire Strip Length [Max]	Wire Strip Length [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Material Flammability Rating	Mounting Type	Contact Material	Positions Per Level	Housing Material	Screw Size	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
AMPHENOL ANYTEK 20020013-H101B01LF	1	Green	12 AWG	22 AWG	0.2 in	5.08 mm	300 V	2.5 mm²	1 mm²	Tin	0.4 Nm	3.5 Lb-In	1.083 in	27.51 mm	Plug, Female Sockets	10	Screw - Pressure Clip	7 mm	6 mm	-40 °C	115 °C	10 A	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	10	Thermoplastic Resin	M2.5
AMPHENOL ANYTEK 20020013-H061B01LF	1	Green	12 AWG	22 AWG	0.2 in	5.08 mm	300 V	2.5 mm²	1 mm²	Tin	0.4 Nm	3.5 Lb-In	1.083 in	27.51 mm	Plug, Female Sockets	6	Screw - Pressure Clip	7 mm	6 mm	-40 °C	115 °C	10 A	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	6	Thermoplastic Resin	M2.5
AMPHENOL ANYTEK 20020013-H021B01LF	1	Green	12 AWG	22 AWG	0.2 in	5.08 mm	300 V	2.5 mm²	1 mm²	Tin	0.4 Nm	3.5 Lb-In	1.083 in	27.51 mm	Plug, Female Sockets	2	Screw - Pressure Clip	7 mm	6 mm	-40 °C	115 °C	10 A	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	2	Thermoplastic Resin	M2.5
AMPHENOL ANYTEK 20020013-H041B01LF	1	Green	12 AWG	22 AWG	0.2 in	5.08 mm	300 V			Tin	0.4 Nm	3.5 Lb-In	1.083 in	27.51 mm	Plug, Female Sockets	4	Screw - Pressure Clip	7 mm	6 mm	-40 °C	115 °C	10 A	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	4	Thermoplastic Resin	M2.5	1 mm˛	2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.48
		10	$ 1.07
		25	$ 0.93
		50	$ 0.84
		100	$ 0.77
		250	$ 0.68
		500	$ 0.64
		1000	$ 0.60
		5000	$ 0.53

Description

General part information

20020013 Series

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources
