CB5330-000

Active

TE Connectivity Raychem Cable Protection

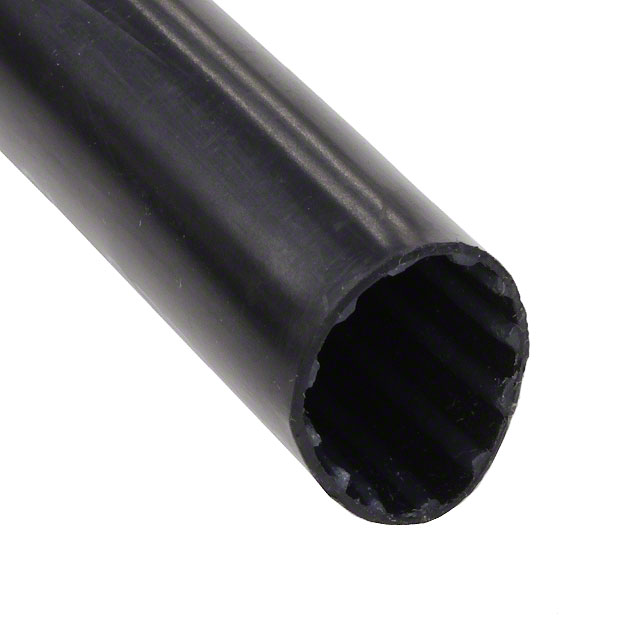

HEATSHRINK 3/4" X 4' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB5330-000

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 3/4" X 4' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB5330-000

Color	Black
Features	Adhesive Lined, Fluid Resistant, Moisture-Proof, Abrasion Resistant, Strain Resistant
Inner Diameter - Recovered [diameter]	0.22 in
Inner Diameter - Recovered [diameter]	5.59 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.095 in
Recovered Wall Thickness	2.41 mm
Shelf Life	144 Months
Shrink Temperature	90 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Semi Rigid

CB53 Series

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Color	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Type	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
TE Connectivity Raychem Cable Protection CB5310-000	7.62 mm	0.3 in	144 Months	Black	762 mm	30 "	2.54 mm	0.1 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof No Markings Strain Resistant	-55 °C	110 °C	1.78 mm	0.07 "
TE Connectivity Raychem Cable Protection CB5369-000	38.1 mm	1.5 in	36 Months	Red	1.22 m	4 ft	12.7 mm	0.5 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof No Markings Strain Resistant	-55 °C	110 °C	3.56 mm	0.14 in
TE Connectivity Raychem Cable Protection CB5317-000	10.16 mm	0.4 in	144 Months	Black	762 mm	30 "	3.81 mm	0.15 "	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof No Markings Strain Resistant	-55 °C	110 °C	1.78 mm	0.07 "
TE Connectivity Raychem Cable Protection CB5397-000	76.2 mm	3 in	144 Months	Red	1.22 m	4 ft	31.75 mm	1.25 "	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof No Markings Strain Resistant	-55 °C	110 °C			0.16 "	4.06 mm
TE Connectivity Raychem Cable Protection CB5330-000			144 Months	Black	1.22 m	4 ft	5.59 mm	0.22 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	-55 °C	110 °C	2.41 mm	0.095 in
TE Connectivity Raychem Cable Protection CB5363-000	33.02 mm	1.3 in	144 Months	Black	1.22 m	4 ft	9.5 mm	0.374 "	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	-55 °C	110 °C	3.05 mm	0.12 in
TE Connectivity Raychem Cable Protection CB5371-000	38.1 mm	1.5 in	36 Months	Black	1.22 m	4 ft	12.7 mm	0.5 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof No Markings Strain Resistant	-55 °C	110 °C	3.56 mm	0.14 in
TE Connectivity Raychem Cable Protection CB5395-000	76.2 mm	3 in	36 Months	Black	1.22 m	4 ft	31.75 mm	1.25 "	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	-55 °C	110 °C			0.16 "	4.06 mm
TE Connectivity Raychem Cable Protection CB5372-000	38.1 mm	1.5 in	144 Months	Black	1.22 m	4 ft	12.7 mm	0.5 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	-55 °C	110 °C	3.56 mm	0.14 in
TE Connectivity Raychem Cable Protection CB5398-000	101.6 mm	4 "	36 Months	Black	1.22 m	4 ft	44.45 mm	1.75 in	Polyolefin (PO) Irradiated	Tubing Semi Rigid	90 °C	1	3	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	-55 °C	110 °C			0.16 "	4.06 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.80
		5	$ 29.47
		10	$ 27.11
		20	$ 24.93
		50	$ 22.94

Description

General part information

CB53 Series

Heat Shrink Tubing, Semi Rigid 0.750" (19.05mm) 3 to 1 Black 4.00' (1.22m)
