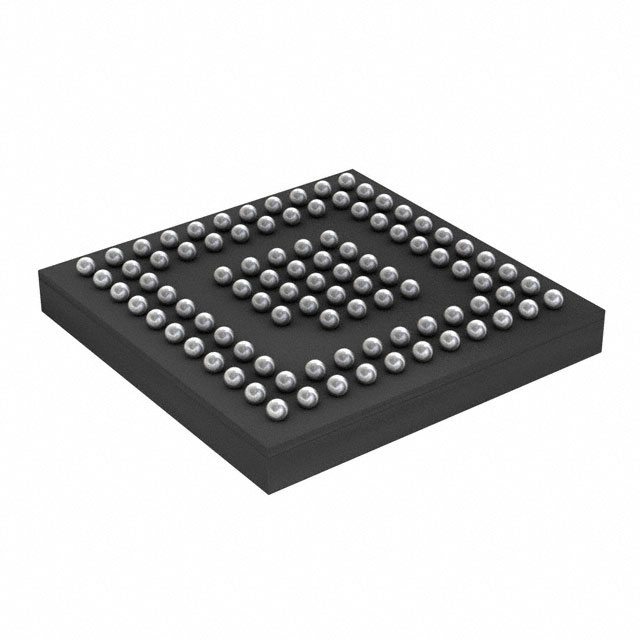

CYPD5225-96BZXIT
ActiveInfineon Technologies
LOW SPEED/FULL SPEED/HIGH SPEED/SUPER SPEED BASIC USB TYPE-C CONTROLLER USB 3.0 3.3V/5V T/R 96-PIN BGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CYPD5225-96BZXIT
ActiveInfineon Technologies
LOW SPEED/FULL SPEED/HIGH SPEED/SUPER SPEED BASIC USB TYPE-C CONTROLLER USB 3.0 3.3V/5V T/R 96-PIN BGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CYPD5225-96BZXIT |
|---|---|
| Current - Supply | 10 mA |
| Function | Controller |
| Interface | SPI, UART, I2C |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 96-VFBGA |
| Protocol | USB |
| Standards | USB 3.0 |
| Supplier Device Package | 96-BGA (6x6) |
| Voltage - Supply | 21.5 V, 2.75 V, 3.15 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CYPD5225 Series
USB Controller USB 3.0 I2C, SPI, UART Interface 96-BGA (6x6)
