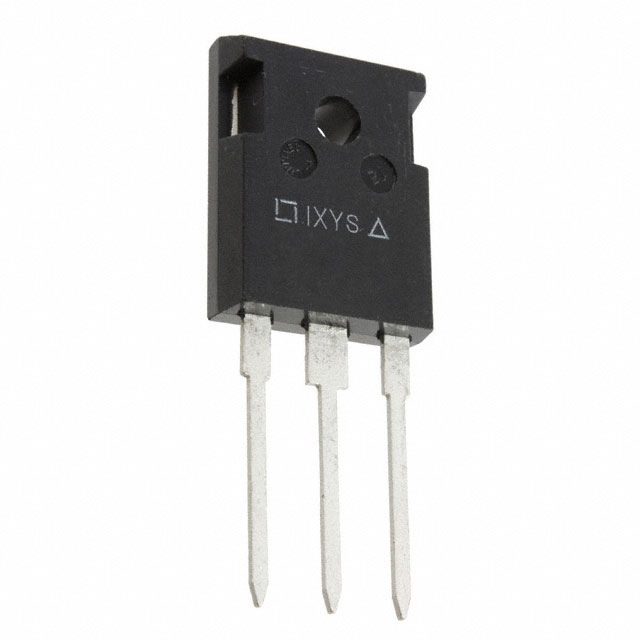

CS30-12IO1

Active

IXYS

SCR 1.2KV 49A TO247AD

Search across all available documentation for this part.

Active

IXYS

SCR 1.2KV 49A TO247AD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CS30-12IO1	CS30 Series

Current - Gate Trigger (Igt) (Max) [Max]	55 mA	55 mA
Current - Hold (Ih) (Max) [Max]	100 mA	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	400 A, 430 A	400 - 430 A
Current - Off State (Max) [Max]	50 µA	50 µA
Current - On State (It (AV)) (Max) [Max]	30 A	30 A
Current - On State (It (RMS)) (Max) [Max]	49 A	49 A
Mounting Type	Through Hole	Through Hole
Package / Case	TO-247-3	TO-247-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	TO-247AD	TO-247AD
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 V
Voltage - Off State	1.2 kV	1.2 - 1.6 kV
Voltage - On State (Vtm) (Max) [Max]	1.63 V	1.63 V

SCR 1600V 47A(RMS) 430A 3-PIN(3+TAB) TO-247AD TUBE

Part	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Supplier Device Package	Mounting Type	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	SCR Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max) [Max]	Current - Off State (Max) [Max]
IXYS CS30-16IO1	30 A	100 mA	55 mA	TO-247-3	TO-247AD	Through Hole	1.6 kV	49 A	Standard Recovery	1 V	400 A, 430 A	1.63 V	50 µA
IXYS CS30-12IO1	30 A	100 mA	55 mA	TO-247-3	TO-247AD	Through Hole	1.2 kV	49 A	Standard Recovery	1 V	400 A, 430 A	1.63 V	50 µA
IXYS CS30-14IO1	30 A	100 mA	55 mA	TO-247-3	TO-247AD	Through Hole	1.4 kV	49 A	Standard Recovery	1 V	400 A, 430 A	1.63 V	50 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.2 kV 49 A Standard Recovery Through Hole TO-247AD
