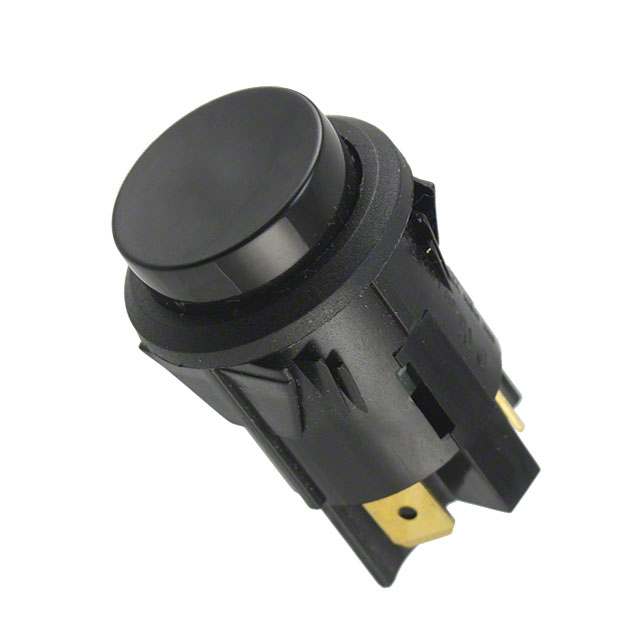

C7050AFBB
ActiveBULGIN LIMITED
SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C7050AFBB
ActiveBULGIN LIMITED
SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C7050AFBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [diameter] | 25 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.12 | |
| 10 | $ 16.25 | |||
| 25 | $ 15.54 | |||
| 50 | $ 14.73 | |||
| 100 | $ 14.20 | |||
| 250 | $ 13.30 | |||
| 500 | $ 12.32 | |||
Description
General part information
C7050AF Series
Pushbutton Switch DPST Standard Panel Mount, Snap-In
Documents
Technical documentation and resources
