Q-0J0140005108i

Active

Amphenol Custom Cable

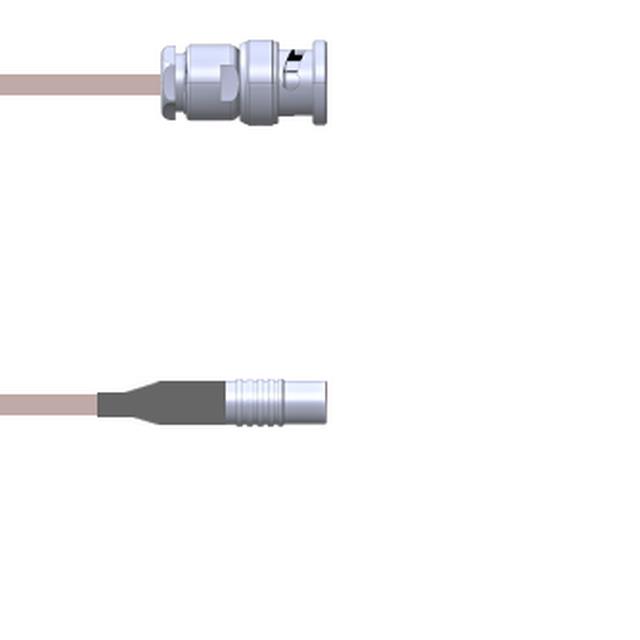

CBL ASSY BNC-MCX PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0140005108i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0140005108i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0J0140 Series

Part	Length	Length	Length	Cable Type	1st Contact Gender	Features	Color	2nd Connector	2nd Connector Mounting Type	1st Connector	Overall Impedance	1st Connector Mounting Type	Style	Frequency - Max [Max]	2nd Contact Gender
Amphenol Custom Cable Q-0J0140003072i	6 ft	72 in	1.8 m	RG-174	Male	Shielded	Black	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140003.75M		29.53 "	750 mm	RG-174	Male	Shielded	Black	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140005036i		36 in	91.44 cm	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J01400051.5M	4.9 ft	59.1 in	1.5 m	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140005003i		3 in	76.2 mm	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140005060i	5 ft	5 '	1.5 m	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140005084i	7 ft	84 in	2.1 m	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J01400052.5M	8.2 '	98.4 in	2.5 m	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140005108i	9 ft	108 in	2.7 m	RG-316	Male	Shielded	Copper	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female
Amphenol Custom Cable Q-0J0140003003i		3 in	76.2 mm	RG-174	Male	Shielded	Black	MCX Jack	Free Hanging (In-Line)	BNC Plug	50 Ohms	Free Hanging (In-Line)	BNC to MCX	4 GHz	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 151.80
		25	$ 148.85
		50	$ 145.90
		100	$ 142.95
		250	$ 140.00

Description

General part information

Q-0J0140 Series

Cable Assembly Coaxial BNC to MCX RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
