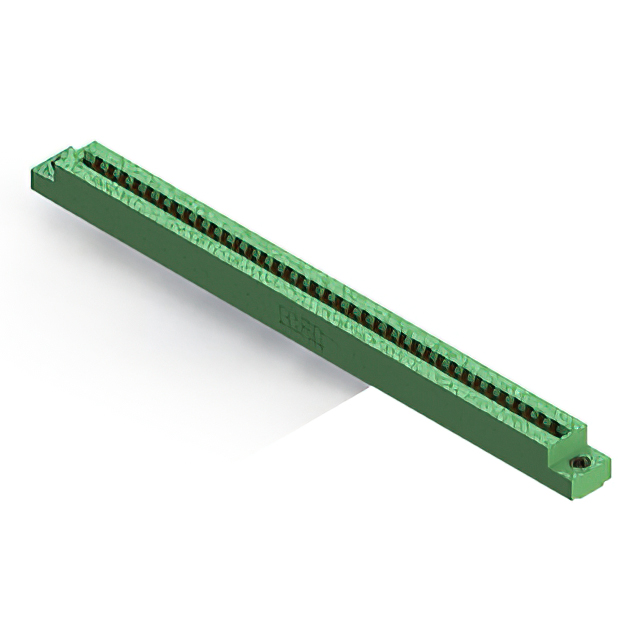

306-037-521-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
306-037-521-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-037-521-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-037 Series
| Part | Contact Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Color | Number of Rows | Termination | Flange Feature | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Contact Material | Gender | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Polyester Thermoplastic | 1 | ||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder | Flush Mount Side Opening Unthreaded | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Polyester Thermoplastic | 1 | 3.25 mm | 0.128 " | |
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Tin | 37 | 37 | 37 | Green | 2 | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | Polyester Thermoplastic | 1 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Tin | 37 | 37 | 37 | Green | 2 | Solder | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | Panel Mount Through Hole | Polyester Thermoplastic | 1 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Polyester Thermoplastic | 1 | ||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1 | ||||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Through Hole | Polyester Thermoplastic | 1 | ||||
EDAC Inc. | Cantilever | Dual | -40 °C | 105 ░C | Gold | 37 | 37 | 37 | Green | 2 | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | Copper Alloy | Female | 0.156 in | 3.96 mm | 74 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 22.17 | |
Description
General part information
306-037 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
