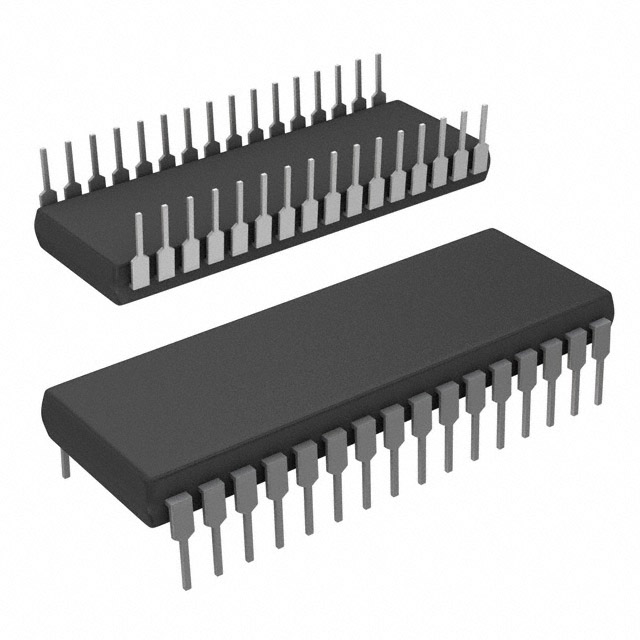

STK14C88-3WF45I

Obsolete

Infineon Technologies

IC NVSRAM 256KBIT PARALLEL 32DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK14C88-3WF45I

Obsolete

Infineon Technologies

IC NVSRAM 256KBIT PARALLEL 32DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK14C88-3WF45I

Access Time	45 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Non-Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	32-DIP
Supplier Device Package	32-PDIP
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V
Write Cycle Time - Word, Page [custom]	45 ns
Write Cycle Time - Word, Page [custom]	45 ns

STK14C88 Series

Part	Supplier Device Package	Mounting Type	Memory Interface	Package / Case	Package / Case	Package / Case	Memory Type	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Access Time	Technology	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Write Cycle Time - Word, Page	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case
Infineon Technologies STK14C88-NF35TR	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	70 °C	0 °C	35 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB	35 ns
Infineon Technologies STK14C88-NF45ITR	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	85 °C	-40 °C	45 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB		45 ns	45 ns
Infineon Technologies STK14C88-5K45M	32-CDIP	Through Hole	Parallel	0.3 in 7.62 mm		32-CDIP	Non-Volatile	NVSRAM			45 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB		45 ns	45 ns	125 °C	-55 °C
Infineon Technologies STK14C88-5L35M	32-PLCC	Surface Mount	Parallel			32-LCC (J-Lead)	Non-Volatile	NVSRAM			35 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB	35 ns			125 °C	-55 °C	11.43	13.97
Infineon Technologies STK14C88-3NF45I	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	85 °C	-40 °C	45 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB		45 ns	45 ns
Infineon Technologies STK14C88-3WF45I	32-PDIP	Through Hole	Parallel	15.24 mm		32-DIP	Non-Volatile	NVSRAM	85 °C	-40 °C	45 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	3 V	3.6 V	32 KB		45 ns	45 ns					0.6 in
Infineon Technologies STK14C88-NF25TR	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	70 °C	0 °C	25 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB	25 ns
Infineon Technologies STK14C88-NF35ITR	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	85 °C	-40 °C	35 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB	35 ns
Infineon Technologies STK14C88-L45I	32-LCC (13.97x11.43)	Surface Mount	Parallel			32-CLCC	Non-Volatile	NVSRAM	85 °C	-40 °C	45 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB		45 ns	45 ns
Infineon Technologies STK14C88-NF25	32-SOIC	Surface Mount	Parallel	0.295 in	7.5 mm	32-SOIC	Non-Volatile	NVSRAM	70 °C	0 °C	25 ns	NVSRAM (Non-Volatile SRAM)	32K x 8	4.5 V	5.5 V	32 KB	25 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK14C88 Series

NVSRAM (Non-Volatile SRAM) Memory IC 256Kbit Parallel 45 ns 32-PDIP
