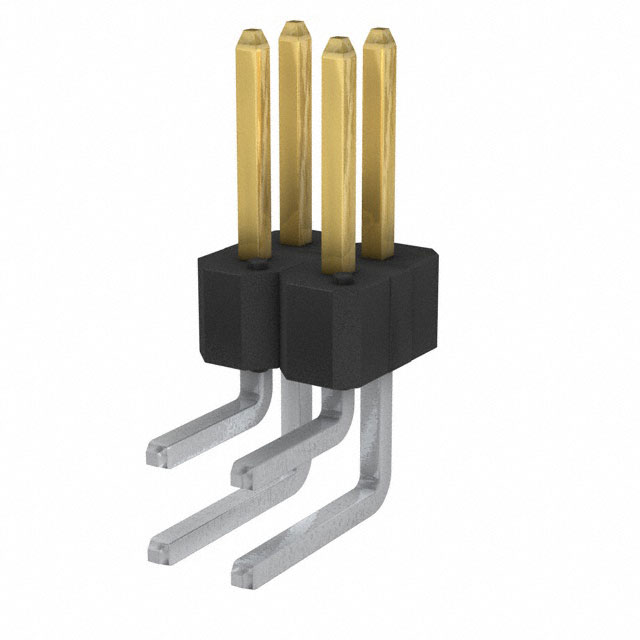

10119110-504001LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Documentsbus-12-059 Other Related Documents Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10119110-504001LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

10119110 Series

Part	Insulation Height	Insulation Height	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Positions Loaded	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Mounting Type	Contact Shape	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Type	Connector Type	Insulation Color	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 10119110-504001LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.23 in	5.84 mm	4	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	Gold	Male Pin	Breakaway Header	Black
Amphenol ICC (FCI) 10119110-526003LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.318 "		26	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder			Gold	Male Pin	Breakaway Header	Black	8.08 mm	0.318 in	8.08 mm
Amphenol ICC (FCI) 10119110-538001LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.23 in	5.84 mm	38	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	Gold	Male Pin	Breakaway Header	Black
Amphenol ICC (FCI) 10119110-510003LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.318 "		10	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder			Gold	Male Pin	Breakaway Header	Black	8.08 mm	0.318 in	8.08 mm
Amphenol ICC (FCI) 10119110-518002LF	6.1 mm	0.24 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.23 in	5.84 mm	18	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	0.15 in	3.81 mm	Gold	Male Pin	Breakaway Header	Black
Amphenol ICC (FCI) 10119110-536001LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.23 in	5.84 mm	36	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	Gold	Male Pin	Breakaway Header	Black
Amphenol ICC (FCI) 10119110-538003LF	4.83 mm	0.19 in	Copper Alloy	30 Áin	0.76 Ám	Unshrouded	All	Push-Pull	0.318 "		38	Through Hole Right Angle	Square	2	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder			Gold	Male Pin	Breakaway Header	Black	8.08 mm	0.318 in	8.08 mm
