HEEE-064-F 65-128

Active

TE Connectivity AMP Connectors

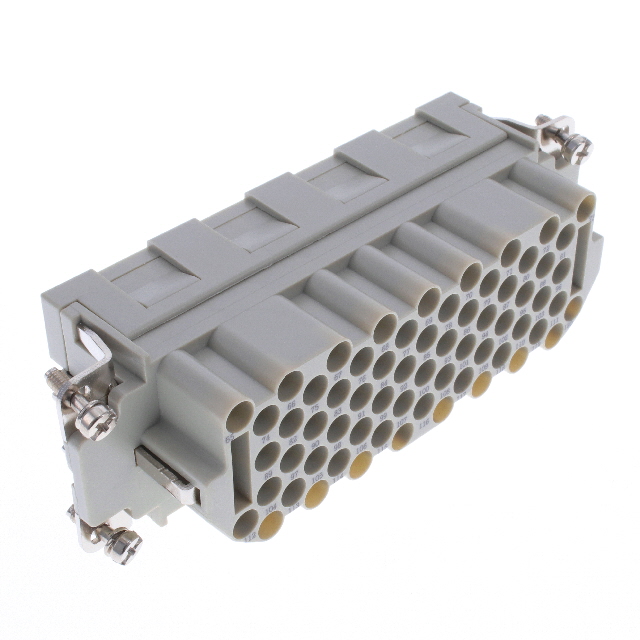

INSRT 64P+1GND HEEE-064-F 65-128

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSRT 64P+1GND HEEE-064-F 65-128

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEEE-064-F 65-128	HEEE-064 Series

Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	CEF, DEF	CEM, DEM, CEF, DEF
Current Rating (Amps)	16 A	16 A
Gender	Female	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	EN45545	EN45545
Number of Positions	64+Ground	64+Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	H24B	H24B
Termination Style	Crimp	Crimp
Voltage Rating	500 V	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

INS ML 64P+1GD HEEE-064-M 65-128

Part	Contact Type	Size	Current Rating (Amps)	Termination Style	Number of Positions	Gender	Material Flammability Rating	Connector Type	Housing Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors HEEE-064-M 65-128	CEM, DEM	H24B	16 A	Crimp	64+Ground	Male	EN45545	Insert without Contacts	Polycarbonate (PC)	500 V	125 °C	-40 °C
TE Connectivity AMP Connectors HEEE-064-F 65-128	CEF, DEF	H24B	16 A	Crimp	64+Ground	Female	EN45545	Insert without Contacts	Polycarbonate (PC)	500 V	125 °C	-40 °C
TE Connectivity AMP Connectors HEEE-064-F	CEF, DEF	H24B	16 A	Crimp	64+Ground	Female	EN45545	Insert without Contacts	Polycarbonate (PC)	500 V	125 °C	-40 °C
TE Connectivity AMP Connectors HEEE-064-M	CEM, DEM	H24B	16 A	Crimp	64+Ground	Male	EN45545	Insert without Contacts	Polycarbonate (PC)	500 V	125 °C	-40 °C

General part information

Female Insert without Contacts 64+Ground Position Crimp
