6382-3PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6382-3PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.33
		10	$ 9.63
		25	$ 9.03
		50	$ 8.60
		100	$ 8.19
		300	$ 7.58
		500	$ 7.31
		1000	$ 6.96

Description

General part information

6382-3PG Series

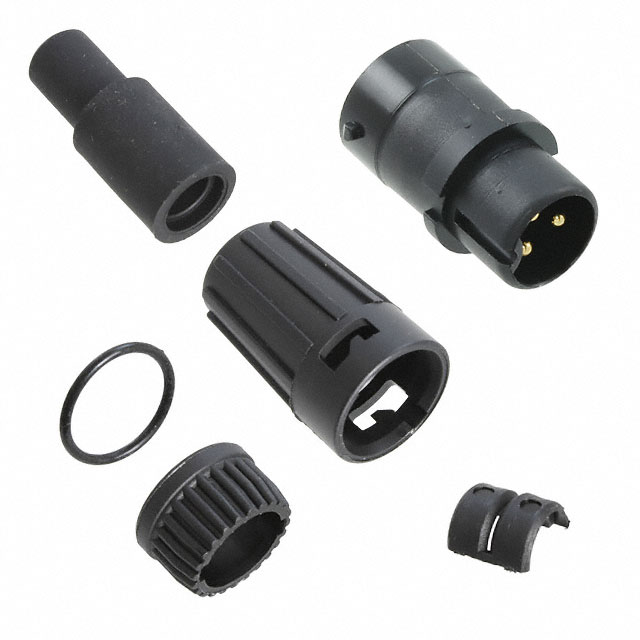

3 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6382-3PG-516	6382-3PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening	-	0.21 in
Cable Opening	-	0.19 in
Cable Opening	-	4.83 mm
Cable Opening	-	5.33 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.18 in	0.18 - 0.2 in
Cable Opening [Max] [custom]	4.57 mm	4.57 - 5.08 mm
Cable Opening [Min] [custom]	0.16 in	0.16 - 0.18 in
Cable Opening [Min] [custom]	4.06 mm	4.06 - 4.57 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6382-3PG Series

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Primary Material	Shielding	Features	Contact Finish - Mating	Contact Material	Ingress Protection	Orientation	Backshell Material, Plating	Connector Type	Current Rating (Amps)	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Mounting Type	Applications	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6382-3PG-516	Plastic	Unshielded	Backshell	Gold	Brass	Weathertight	Keyed	Nylon, Polyamide (PA)	Male Pins, Plug	Varies by Wire Gauge	600 V	0.16 in	0.18 in	4.06 mm	4.57 mm	Black	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	-40 °C	115 °C
Conxall/Switchcraft 6382-3PG-513	Plastic	Unshielded	Backshell	Gold	Brass	Weathertight	Keyed	Nylon, Polyamide (PA)	Male Pins, Plug	Varies by Wire Gauge	600 V					Black	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	-40 °C	115 °C	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6382-3PG-318	Plastic	Unshielded	Backshell	Gold	Brass	Weathertight	Keyed	Nylon, Polyamide (PA)	Male Pins, Plug	Varies by Wire Gauge	600 V	0.18 in	0.2 in	4.57 mm	5.08 mm	Black	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	-40 °C	115 °C
Conxall/Switchcraft 6382-3PG-519	Plastic	Unshielded	Backshell	Gold	Brass	Weathertight	Keyed	Nylon, Polyamide (PA)	Male Pins, Plug	Varies by Wire Gauge	600 V					Black	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	-40 °C	115 °C			0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6382-3PG-311	Plastic	Unshielded	Backshell	Gold	Brass	Weathertight	Keyed	Nylon, Polyamide (PA)	Male Pins, Plug	Varies by Wire Gauge	600 V					Black	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	-40 °C	115 °C							2.29 mm	0.09 in, 0.14 in	3.56 mm
