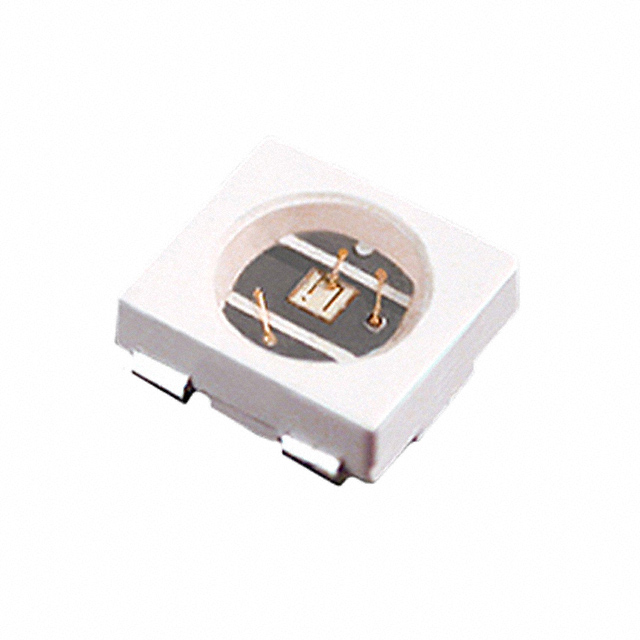

XZDG25X92S-4

Obsolete

SunLED

LED GREEN CLEAR CHIP SMD

Search across all available documentation for this part.

Obsolete

SunLED

LED GREEN CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Supplier Device Package	Lens Transparency	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Lens Color	Package / Case	Viewing Angle	Wavelength - Dominant	Configuration	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Current - Test	Luminous Flux @ Current/Temperature	Lens Type	Lumens/Watt @ Current - Test	Wavelength	Type	Current - Max [Max]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Thermal Resistance of Package [custom]	Height (Max) [Max] [z]	Package / Case
SunLED XZDG25X92S-4	Surface Mount	Chip LED	Clear	6000 mcd	Green	3.5 V	2.6 mm	Colorless	4-SMD J-Lead	120 °	525 nm	Standard	1.15 mm	3.15 mm	3.5 mm	515 nm	150 mA
SunLED XZDG25X112S7W-A					Green	10.8 V				120 °		Linear Light Strip		5 mm	48 mm			239.5 lm	Flat	32 lm/W	525 nm	LED Module	700 mA	32.4 mm	3 mm	1.6 mm
SunLED XZDG25X143S	Surface Mount	SMD			Green	3.5 V			Nonstandard SMD	120 °				0.118 in	0.209 "		150 mA				525 nm		300 mA				5.3 mm	3 mm	0.04 "	1.02 mm	50 °C/W
SunLED XZDG25X109FS	Surface Mount	2-SMD	Clear	6990 mcd	Green	3.5 V	2.5 mm	Colorless	1411	120 °	525 nm	Standard		2.8 mm	3.5 mm	515 nm	150 mA															1.05 mm	3528 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 525nm LED Indication - Discrete 3.5V 4-SMD, J-Lead
