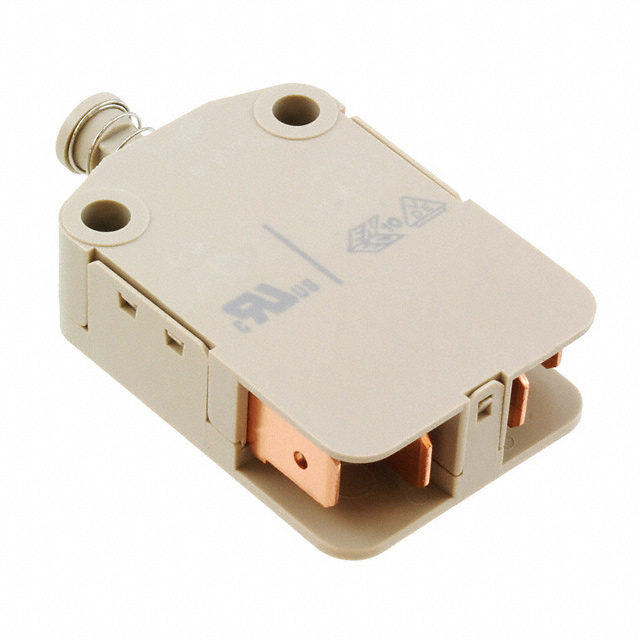

AV11753F
ObsoletePanasonic Electric Works
SWITCH SNAP ACT 3PST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AV11753F
ObsoletePanasonic Electric Works
SWITCH SNAP ACT 3PST-NO 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AV11753F |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | 3PST-NO |
| Current Rating (Amps) | 10 A |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 1 kgf |
| Operating Position [x] | 0.366 " |
| Operating Position [x] | 9.3 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.083 in |
| Overtravel | 2.1 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AV117 Series
Switch 3PST-NO Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
