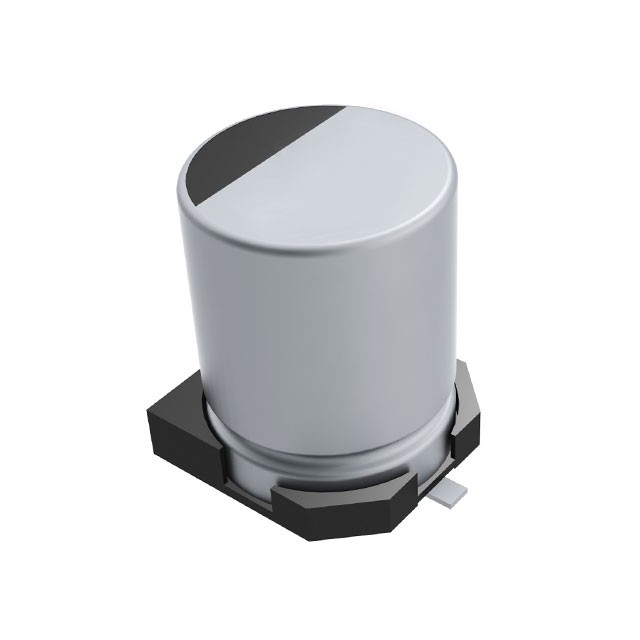

EXV226M050A9HAA

Active

KEMET

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, EXV SERIES, 22 F, 50 V, RADIAL CAN - SMD, 6.3 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, EXV SERIES, 22 F, 50 V, RADIAL CAN - SMD, 6.3 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	EXV226M050A9HAA

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	1.3 Ohm
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Impedance	1.3 Ohms
Lifetime @ Temp.	3000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ripple Current @ High Frequency	230 mA
Ripple Current @ Low Frequency	161 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.307 in
Surface Mount Land Size [y]	7.8 mm
Tolerance	20 %
Voltage - Rated	50 VDC

SMD ALUMINIUM ELECTROLYTIC CAPACITOR, EXV SERIES, 22 F, 50 V, RADIAL CAN - SMD, 6.3 MM ROHS COMPLIANT: YES

Part	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Polarization	Impedance	Ripple Current @ Low Frequency	Mounting Type	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Capacitance	Tolerance
KEMET EXV226M050A9HAA	0.307 in	7.8 mm	6.6 mm	0.26 in	0.248 in	6.3 mm	230 mA	3000 Hrs	105 ░C	-55 °C	1.3 Ohm	Polar	1.3 Ohms	161 mA	Surface Mount	General Purpose	Radial, Can - SMD	8 mm	0.315 in	50 VDC	22 µF	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm @ 100kHz 3000 Hrs @ 105°C
