ADF4360-0BCPZRL7

Active

Analog Devices Inc./Maxim Integrated

INTEGRATED INTEGER-N SYNTHESIZER/VCO OUTPUT FREQUENCY 2400-2725

Find alt

Alpha

ADF4360-0BCPZRL7

Active

Analog Devices Inc./Maxim Integrated

INTEGRATED INTEGER-N SYNTHESIZER/VCO OUTPUT FREQUENCY 2400-2725

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ADF4360 Series

The ADF4360-9 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-9 center frequency is set by external inductors. This allows a VCO frequency range of between 65 MHz and 400 MHz.An additional divider stage allows division of the VCO signal. The CMOS level output is equivalent to the VCO signal divided by integer value between 2 and 31. This divided signal can be further divided by two if desired.Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.ApplicationsSystem clock generationTest equipmentWireless LANsCATV equipmentData Sheet, Rev. A, 3/08

Technical Specifications

Parameters and characteristics for this part

Specification	ADF4360-0BCPZRL7

Differential Input	No
Differential Output	No
Divider	Yes
Frequency - Max	2.725 GHz
Input	CMOS, TTL
Input Ratio	1
Mounting Type	Surface Mount
Multiplier	No
Number of Circuits	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output	Clock
Output Ratio	2
Package / Case	CSP, 24-WFQFN Exposed Pad
Package Length	4 mm
Package Name	24-LFCSP
Package Width	4 mm
PLL	Yes
Type	Fanout Distribution, Integer N Synthesizer (RF)
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V

ADF4360 Series

Integrated Integer-N Synthesizer and VCO - Output Frequency 1050 to 1250

Part	Input	Input Ratio	Output Ratio	Package / Case	Number of Circuits	Output	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Frequency - Max	Multiplier	Divider	Differential Output	Differential Input	Type	PLL	Mounting Type	Supplied Contents	Embedded	Contents	Function	Utilized IC / Part	Primary Attributes	Secondary Attributes
Analog Devices Inc./Maxim Integrated ADF4360-6BCPZRL7	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	1.25 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount

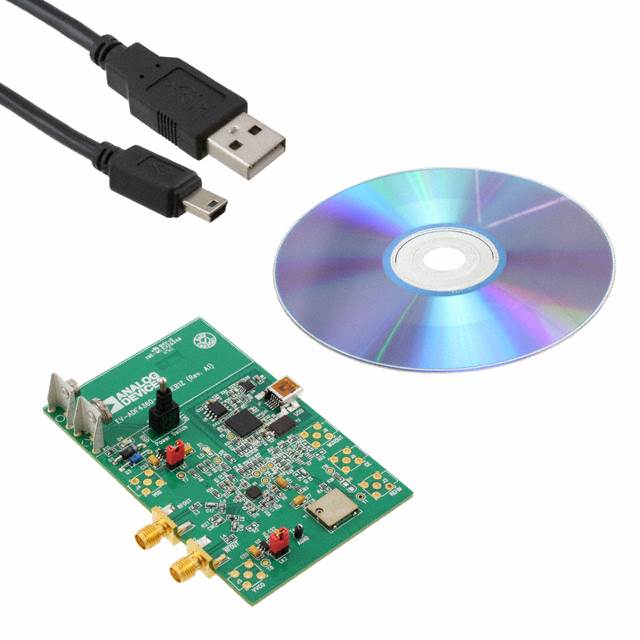

Analog Devices Inc./Maxim Integrated EV-ADF4360-8EB1Z																			Timing			Board(s) Cable(s)	No	Board Cable	Frequency Synthesizer	ADF4360-8	Single Integer-N PLL with VCO	Differential Output
Analog Devices Inc./Maxim Integrated EV-ADF4360-7EB1Z																			Timing			Board(s) Cable(s)	No	Board Cable	Frequency Synthesizer	ADF4360-7	Single Integer-N PLL with VCO	200kHz PFD 900MHz
Analog Devices Inc./Maxim Integrated ADF4360-2BCPZ	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	2.17 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-3BCPZRL	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	1.95 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-2BCPZRL7	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	2.17 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-1BCPZRL7	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	2.45 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-3BCPZ	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	1.95 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-0BCPZ	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	2.725 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount
Analog Devices Inc./Maxim Integrated ADF4360-0BCPZRL7	CMOS TTL	1	2	24-WFQFN Exposed Pad CSP	1	Clock	-40 °C	85 °C	4 mm	24-LFCSP	4 mm	3.6 V	3 V	2.725 GHz	No	Yes	No	No	Fanout Distribution Integer N Synthesizer (RF)	Yes	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UG-095: Evaluation Board User Guide for ADF4360-0 (Rev.B)

AN-30: Ask the Applications Engineer - PLL Synthesizers

Package Drawing - 24-Lead LFCSP (4mm x 5mm w/ EP)

UG-476: PLL Software Installation Guide

ADF4360-0BCPZRL7 | Datasheet

Tape and Reel Packaging
