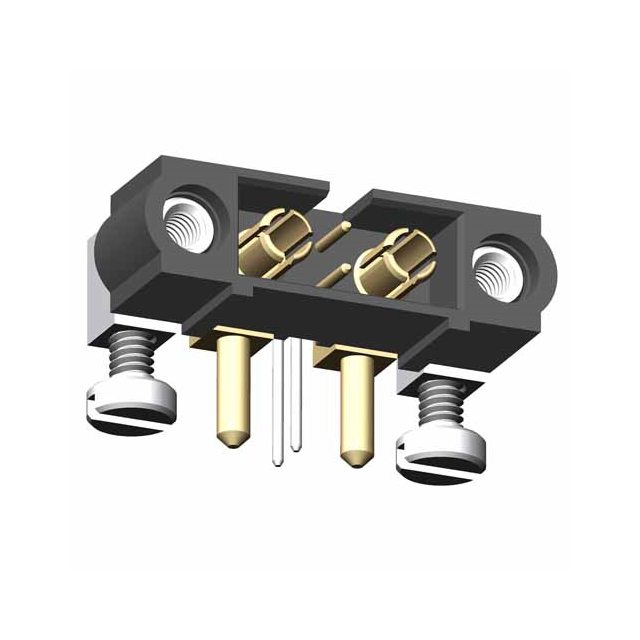

M80-5L20222M5-01-334-01-334

Active

Harwin Inc.

CONN HEADER R/A 4POS

Search across all available documentation for this part.

Active

Harwin Inc.

CONN HEADER R/A 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5L20222M5-01-334-01-334

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	800 V

Part	Features	Connector Type	Insulation Color	Contact Finish - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Insulation Material	Material Flammability Rating	Shrouding	Style	Number of Rows	Termination	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Number of Positions
Harwin Inc. M80-5L20222M5-01-334-01-334	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Header	Black	Gold	0.218 in	5.55 mm	0.079 in	2 mm	All	800 V	29.5 Áin	0.75 Ám	-55 °C	125 °C	2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	2	Solder	0.177 in	4.5 mm	Male Pin	Through Hole Right Angle	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 4 (2 + 2 Power) position
