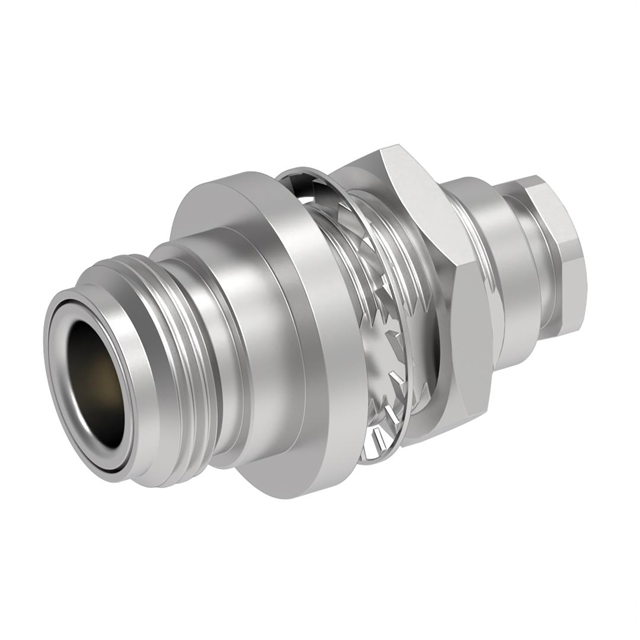

R161321000

Active

Radiall USA, Inc.

RF N CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CLAMP TERMINAL, JACK,

Deep-Dive with AI

Search across all available documentation for this part.

R161321000

Active

Radiall USA, Inc.

RF N CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CLAMP TERMINAL, JACK,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161321000

Body Finish	White Bronze
Body Material	Brass
Cable Group	176DS, 316, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

R16132 Series

Part	Dielectric Material	Impedance	Cable Group	Shield Termination	Body Material	Connector Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Body Finish	Mating Cycles	Ingress Protection	Voltage Rating	Connector Style	Center Contact Material	Mounting Feature	Contact Termination	Center Contact Plating	Housing Color	Frequency - Max [Max]
Radiall USA, Inc. R161321000	Polytetrafluoroethylene (PTFE)	50 Ohms	176DS 316 RG-174	Crimp	Brass	Female Socket Jack	1	155 °C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	250 VDC	N Type	Beryllium Copper	Bulkhead - Rear Side Nut	Crimp	Gold	Silver	11 GHz
Radiall USA, Inc. R161322000W	Polytetrafluoroethylene (PTFE)	50 Ohms	187 188 316 316 Double Braid RG-179	Clamp	Brass	Female Socket Jack	1	155 °C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	250 VDC	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Solder	Gold	Silver	11 GHz
Radiall USA, Inc. R161325000W	Polytetrafluoroethylene (PTFE)	50 Ohms	141 142 223 400 RG-58	Clamp	Brass	Female Socket Jack	1	155 °C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	850 V	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Solder	Gold	Silver	11 GHz
Radiall USA, Inc. R161329200	Polytetrafluoroethylene (PTFE)	50 Ohms	223 400 RG-142	Crimp	Brass	Female Socket Jack	1	155 °C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	850 V	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Crimp	Gold	Silver	11 GHz
Radiall USA, Inc. R161325000	Polytetrafluoroethylene (PTFE)	50 Ohms	141 142 223 400 RG-58	Clamp	Brass	Female Socket Jack	1	155 °C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	850 V	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Solder	Gold	Silver	11 GHz
Radiall USA, Inc. R161323000W	Polytetrafluoroethylene (PTFE)	50 Ohms		Clamp	Brass	Female Socket Jack	1	105 ░C	-55 °C	0.15 dB	White Bronze	500	IP67 - Dust Tight Waterproof	335 V	N Type	Beryllium Copper	Bulkhead - Rear Side Nut	Solder	Gold	Silver	11 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.27
		10	$ 30.01
		25	$ 28.71
		50	$ 27.79
		100	$ 26.86
		250	$ 25.38

Description

General part information

R16132 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
