1700/14EK

Active

3M Electronic Specialty

CBL RIBN 14COND TWIST-PAIR

1700/14EK

Active

3M Electronic Specialty

CBL RIBN 14COND TWIST-PAIR

Description Specifications Series Pricing CAD Documents

Description

General part information

1700 Series

Flat Ribbon Cable Multiple 14 (7 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 300.0' (91.44m)

Technical Specifications

Parameters and characteristics for this part

Specification	1700/14EK

Cable Type	Flat Twisted Pair
Conductor Arrangement	Twisted
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	300 ft
Number of Conductors	14
Number of Conductors - Pair	7
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.05 in
Ratings	Style, 20462, UL
Ribbon Thickness	0.08 in
Ribbon Width	0.7 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

1700 Series

...

Part	Length	Voltage	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Jacket Color	Conductor Strand Count	Conductor Strand Gauge	Shielding	Features	Wire Gauge	Jacket (Insulation) Material	Conductor Arrangement	Number of Conductors	Number of Conductors - Pair	Ribbon Thickness	Pitch	Ribbon Width	Ratings	Insulation Resistance	Conductor Material	Shelf Life Start	Shelf Life	Length (yd)	Length (ft)	Color	Thickness	Width	Backing, Carrier	Tape Type	Temperature Range (Max)	Usage	Temperature Range (Min)	Adhesive	Length
3M Electronic Specialty 1700/34 100SF	5 ft 10 ft 25 ft 50 ft 100 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded	Splice Free	28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	34	17	0.08 in	0.05 in	1.7 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700C-GREEN-3/4X66'																						Date of Manufacture	60 Months	22 yd	66 ft	Green	0.007 in	0.75 in	Poly Vinyl Chloride PVC	Electrical	176 °F	General Purpose
3M Electronic Specialty 1700-1X66FT																						Date of Manufacture	60 Months	22 yd	66 ft	Black	0.007 in	1 in	Poly Vinyl Chloride PVC	Electrical	176 °F	General Purpose	0 °C	Rubber

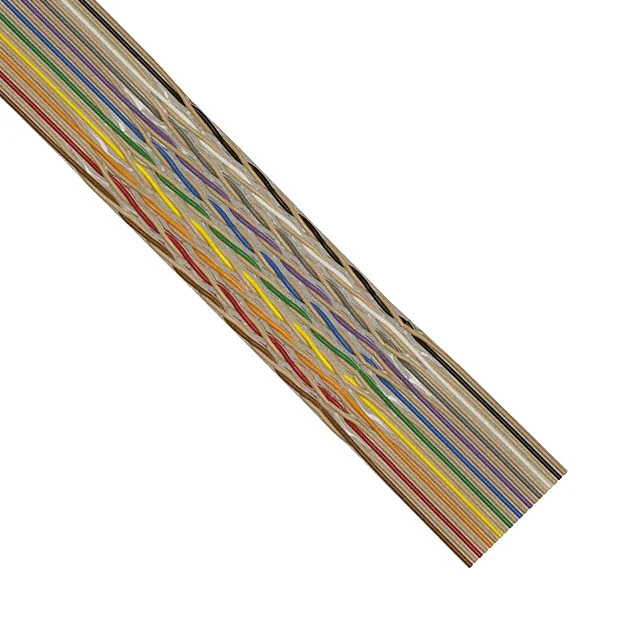

3M Electronic Specialty 1700/20 100SF	5 ft 10 ft 25 ft 50 ft 100 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded	Splice Free	28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	20	10	0.08 in	0.05 in	1 in	20462 Style UL	1 GOhms	Copper Tinned														Enter Number of Feet in Order Quantity
3M Electronic Specialty 1700/14EK	300 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded		28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	14	7	0.08 in	0.05 in	0.7 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700/20BA	100 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded		28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	20	10	0.08 in	0.05 in	1 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700/60 100SF	5 ft 10 ft 25 ft 50 ft 100 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded	Splice Free	28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	60	30	0.08 in	0.05 in	3 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700/34EL 299'	299 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded		28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	34	17	0.08 in	0.05 in	1.7 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700/34EN 300'	300 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded		28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	34	17	0.08 in	0.05 in	1.7 in	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 1700/16BASF	100 ft	300 V	Flat Twisted Pair	-20 °C	105 °C	Multiple	7 Strands	36 AWG	Unshielded	Splice Free	28 AWG	Poly-Vinyl Chloride (PVC)	Twisted	16	8	0.08 in	0.05 in	0.8 in	20462 Style UL	1 GOhms	Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1700/14EK | Datasheet

Datasheet
