TXS0104EYZTR
ActiveTexas Instruments
FOUR-BIT BIDIRECTIONAL VOLTAGE-LEVEL SHIFTER FOR OPEN-DRAIN AND PUSH-PULL APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
TXS0104EYZTR
ActiveTexas Instruments
FOUR-BIT BIDIRECTIONAL VOLTAGE-LEVEL SHIFTER FOR OPEN-DRAIN AND PUSH-PULL APPLICATIONS
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TXS0104EYZTR | TXS0104 Series |
|---|---|---|
| Channel Type | Bidirectional | Bidirectional |
| Channels per Circuit | 4 | 4 |
| Data Rate | 24 Mbps | 24 Mbps |
| Features | Auto-Direction Sensing | Auto-Direction Sensing |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Open Drain, Push-Pull | Open Drain, Push-Pull |
| Package / Case | 12-UFBGA, DSBGA | 14-SOIC, 12-UFBGA, 14-VFQFN Exposed Pad, DSBGA, 14-TSSOP, 12-VFBGA |
| Package / Case | - | 0.154 in |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Qualification | - | AEC-Q100 |

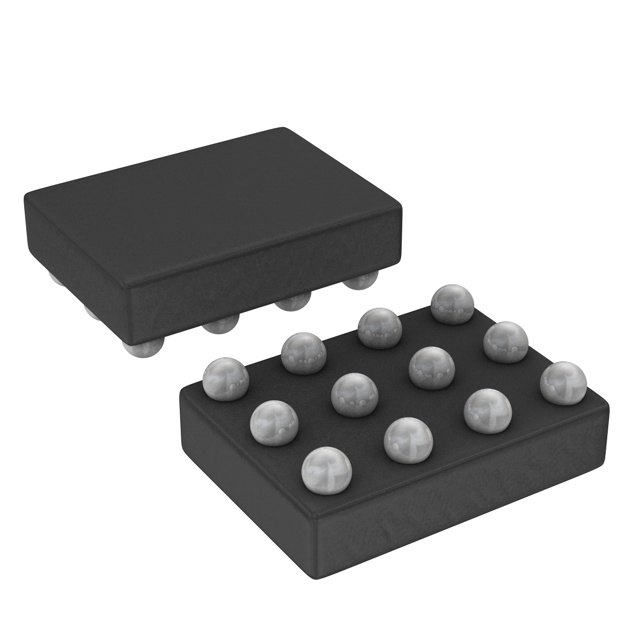

| Supplier Device Package | 12-DSBGA (1.9x1.4) | 12-BGA Microstar Junior (2.5x2), 14-VQFN (3.5x3.5), 12-DSBGA (1.9x1.4), 12-BGA Microstar Junior (2x2.5), 14-TSSOP, 12-NFBGA (2x2.5) |
| Translator Type | Voltage Level | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V | 5.5 V |
| Voltage - VCCB [Min] | 2.3 V | 2.3 V |
TXS0104 Series
Four-bit bidirectional voltage-level shifter for open-drain and push-pull applications
| Part | Translator Type | Features | Channel Type | Voltage - VCCB [Min] | Voltage - VCCB [Max] | Mounting Type | Channels per Circuit | Voltage - VCCA [Min] | Voltage - VCCA [Max] | Number of Circuits | Data Rate | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [y] | Package / Case | Output Type | Supplier Device Package | Package / Case [custom] | Package / Case [custom] | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TXS0104ED | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 0.154 in | 3.9 mm | 14-SOIC | Open Drain, Push-Pull | |||||
Texas Instruments TXS0104EZXUR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 12-UFBGA | Open Drain, Push-Pull | 12-BGA Microstar Junior (2.5x2) | ||||||
Texas Instruments TXS0104ERGYR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 14-VFQFN Exposed Pad | Open Drain, Push-Pull | 14-VQFN (3.5x3.5) | ||||||
Texas Instruments TXS0104EDR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 0.154 in | 3.9 mm | 14-SOIC | Open Drain, Push-Pull | |||||
Texas Instruments TXS0104EYZTR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 12-UFBGA, DSBGA | Open Drain, Push-Pull | 12-DSBGA (1.9x1.4) | ||||||
Texas Instruments TXS0104ERGYRG4 | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 14-VFQFN Exposed Pad | Open Drain, Push-Pull | 14-VQFN (3.5x3.5) | ||||||
Texas Instruments TXS0104EGXUR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 12-UFBGA | Open Drain, Push-Pull | 12-BGA Microstar Junior (2x2.5) | ||||||
Texas Instruments TXS0104EPWR | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 14-TSSOP | Open Drain, Push-Pull | 14-TSSOP | 0.173 " | 4.4 mm | ||||
Texas Instruments TXS0104EDG4 | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 85 °C | -40 °C | 0.154 in | 3.9 mm | 14-SOIC | Open Drain, Push-Pull | |||||
Texas Instruments TXS0104EQPWRQ1 | Voltage Level | Auto-Direction Sensing | Bidirectional | 2.3 V | 5.5 V | Surface Mount | 4 | 1.65 V | 3.6 V | 1 | 24 Mbps | 125 °C | -40 °C | 14-TSSOP | Open Drain, Push-Pull | 14-TSSOP | 0.173 " | 4.4 mm | Automotive | AEC-Q100 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.83 | |||
| 25 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 3000 | $ 0.49 | ||
| Texas Instruments | LARGE T&R | 1 | $ 0.76 | |
| 100 | $ 0.58 | |||
| 250 | $ 0.43 | |||
| 1000 | $ 0.31 | |||
Description
General part information
TXS0104 Series
This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track V CCA. V CCA accepts any supply voltage from 1.65 V to 3.6 V. V CCA must be less than or equal to V CCB. The B port is designed to track V CCB. V CCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
The TXS0104E is designed so that the OE input circuit is supplied by V CCA.
