Q-0D02P0003012i

Active

McGill Microwave Systems

CBL ASSY BNC-SMA PLUG-JACK 12"

Q-0D02P0003012i

Active

McGill Microwave Systems

CBL ASSY BNC-SMA PLUG-JACK 12"

Description Specifications Series Pricing CAD Documents

Description

General part information

Q-0D02P0 Series

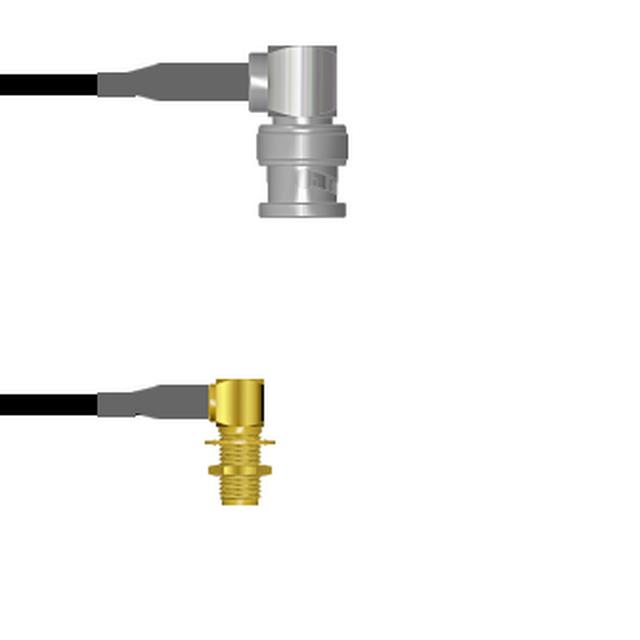

Cable Assembly Coaxial BNC to SMA RG-174 12.00" (304.80mm)

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D02P0003012i

1st Connector	Right Angle, BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG, 174
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	12 in
Overall Impedance	50 Ohms
Style	SMA, BNC

Q-0D02P0 Series

Part	Style	Overall Impedance	Cable Type	1st Connector	1st Connector Mounting Type	Features	1st Contact Gender	2nd Contact Gender	Color	Frequency - Max	2nd Connector Mounting Feature	2nd Connector	2nd Connector Mounting Type	Length	Length (ft)
McGill Microwave Systems Q-0D02P0003036i	BNC SMA	50 Ohms	174 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Black	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	36 in
McGill Microwave Systems Q-0D02P0005018i	BNC SMA	50 Ohms	316 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Copper	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	18 in
McGill Microwave Systems Q-0D02P0005036i	BNC SMA	50 Ohms	316 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Copper	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	36 in
McGill Microwave Systems Q-0D02P0005072i	BNC SMA	50 Ohms	316 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Copper	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	72 in
McGill Microwave Systems Q-0D02P00051.5M	BNC SMA	50 Ohms	316 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Copper	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	59.1 in	4.9 ft
McGill Microwave Systems Q-0D02P0003002M	BNC SMA	50 Ohms	174 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Black	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount		6.6 ft
McGill Microwave Systems Q-0D02P0003012i	BNC SMA	50 Ohms	174 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Black	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	12 in
McGill Microwave Systems Q-0D02P0003.25M	BNC SMA	50 Ohms	174 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Black	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	9.843 in
McGill Microwave Systems Q-0D02P0003072i	BNC SMA	50 Ohms	174 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Black	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	72 in
McGill Microwave Systems Q-0D02P0005009i	BNC SMA	50 Ohms	316 RG	BNC Plug Right Angle	Free Hanging (In-Line)	Shielded	Male	Female	Copper	4 GHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Panel Mount	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
