V23105A5402A201

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 3A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

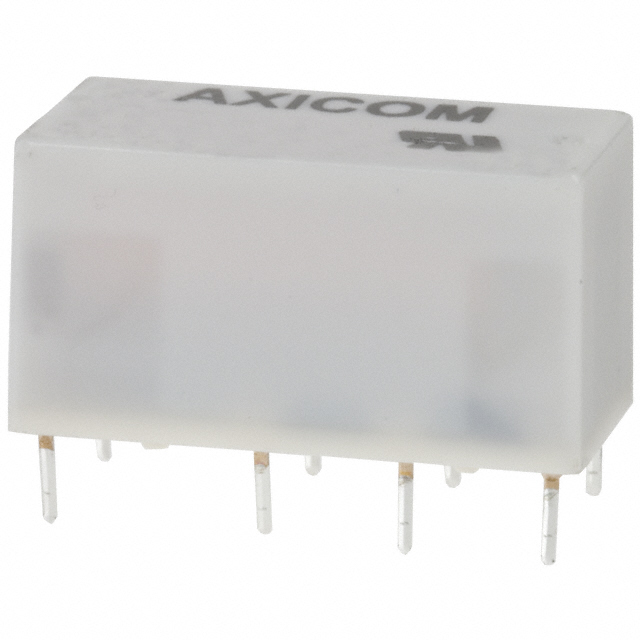

V23105A5402A201

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 3A 6V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23105A5402A201

Coil Current	66.7 mA
Coil Resistance	90 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	3 A
Load - Max Switching	660 W, 750 VA
Mounting Type	Through Hole
Must Operate Voltage	4.2 VDC
Must Release Voltage	0.3 VDC
Operate Time	6 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

V23105 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Load - Max Switching	Contact Form	Switching Voltage	Relay Type	Must Operate Voltage	Coil Type	Coil Current	Must Release Voltage	Coil Voltage	Contact Material	Mounting Type	Coil Resistance	Termination Style	Operate Time	Contact Rating (Current)
TE Connectivity Potter & Brumfield Relays V23105A5301A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	3.5 VDC	Non Latching	40 mA	0.25 VDC	5 VDC	Silver Nickel (AgNi)	Through Hole	125 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5506A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	6.3 VDC	Non Latching	64.4 mA	0.45 VDC	9 VDC	Silver Nickel (AgNi)	Through Hole	140 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5501A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	3.5 VDC	Non Latching	139 mA	0.25 VDC	5 VDC	Silver Nickel (AgNi)	Through Hole	36 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5407A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	33.6 VDC	Non Latching	8.3 mA	2.4 VDC	48 VDC	Silver Nickel (AgNi)	Through Hole	5.76 kOhms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5303A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	8.4 VDC	Non Latching	16.7 mA	0.6 VDC	12 VDC	Silver Nickel (AgNi)	Through Hole	720 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5402A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	4.2 VDC	Non Latching	66.7 mA	0.3 VDC		Silver Nickel (AgNi)	Through Hole	90 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5306A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	6.3 VDC	Non Latching	22.2 mA	0.45 VDC	9 VDC	Silver Nickel (AgNi)	Through Hole	405 Ohms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5507A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	33.6 VDC	Non Latching	12 mA	2.4 VDC	48 VDC	Silver Nickel (AgNi)	Through Hole	4 kOhms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5005A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom	19.2 VDC	Non Latching	6.3 mA	1.2 VDC	24 VDC	Silver Nickel (AgNi)	Through Hole	3.84 kOhms	PC Pin	6 ms	3 A
TE Connectivity Potter & Brumfield Relays V23105A5478A201	85 °C	-40 °C	4 ms	660 W 750 VA	DPDT (2 Form C)	220 VDC 250 VAC	Telecom		Non Latching	12 mA		48 VDC	Silver Nickel (AgNi)	Through Hole	4 kOhms	PC Pin	6 ms	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V23105 Series

Telecom Relay DPDT (2 Form C) 6VDC Coil Through Hole
