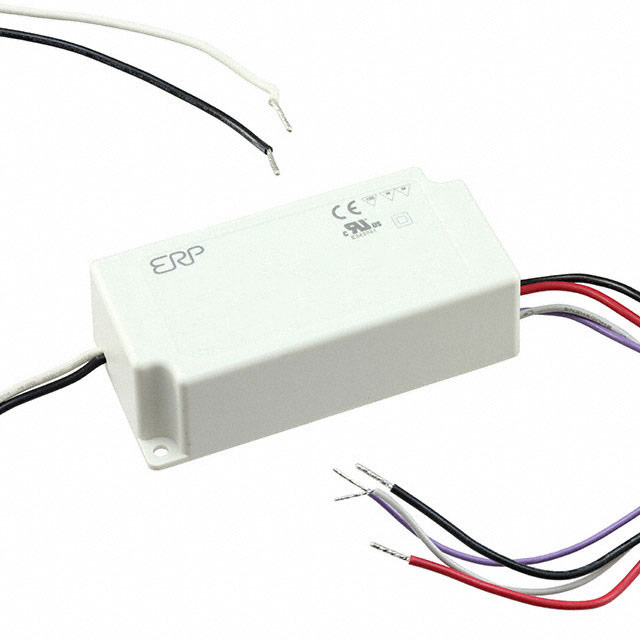

ESST040W-1400-24

Active

ERP Power, LLC

LED DRIVER CC AC/DC 14-24V 1.4A

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 14-24V 1.4A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 14 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ESST040W-1400-24	ESST040W Series

Approval Agency	CB, CE, NEMKO, cRUcs, KC, FC, CCC, ENEC, CSA, SA, UL	CB, CE, NEMKO, cRUcs, KC, FC, CCC, ENEC, CSA, SA, UL
Current - Output (Max) [Max]	1.4 A	1.4 - 900 mA
Dimming	ELV, Analog, TRIAC	ELV, Analog, TRIAC
Efficiency	87 %	87 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	34 W	34 - 38 W
Ratings	IP64	IP64
Size / Dimension [x]	3.3 "	3.3 "
Size / Dimension [x]	83.8 mm	83.8 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [y]	39.9 mm	39.9 mm
Size / Dimension [z]	25.1 mm	25.1 mm
Size / Dimension [z]	0.99 "	0.99 "
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	24 V	24 - 42 V
Voltage - Output [Min]	14 V	14 - 28 V

LED DRIVER CC AC/DC 28-42V 900MA

Part	Features	Type	Ratings	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Topology	Mounting Type	Dimming	Efficiency	Voltage - Input (Min) [Min]
ERP Power, LLC ESST040W-0900-42	OCP, OTP, SCP	Constant Current	IP64	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	900 mA	1	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	Wire Leads	28 V	42 V	277 VAC	38 W	AC DC Converter	Chassis Mount	Analog, ELV, TRIAC	87 %	120 VAC
ERP Power, LLC ESST040W-0800-42	OCP, OTP, SCP	Constant Current	IP64	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	800 mA	1	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	Wire Leads	28 V	42 V	277 VAC	34 W	AC DC Converter	Chassis Mount	Analog, ELV, TRIAC	87 %	120 VAC
ERP Power, LLC ESST040W-1400-27	OCP, OTP, SCP	Constant Current	IP64	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	1.4 A	1	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	Wire Leads	20 V	27 V	277 VAC	38 W	AC DC Converter	Chassis Mount	Analog, ELV, TRIAC	87 %	120 VAC
ERP Power, LLC ESST040W-1400-24	OCP, OTP, SCP	Constant Current	IP64	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	1.4 A	1	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	Wire Leads	14 V	24 V	277 VAC	34 W	AC DC Converter	Chassis Mount	Analog, ELV, TRIAC	87 %	120 VAC
