Q-1T02V0003060i

Active

Amphenol Custom Cable

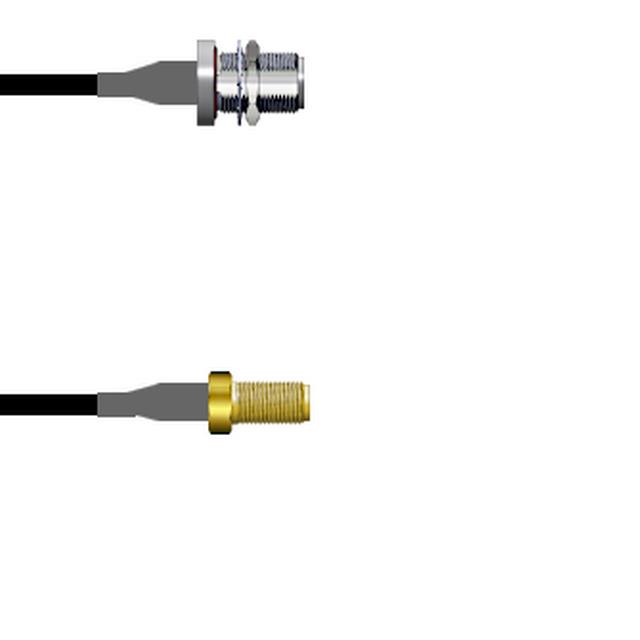

CBL ASSY SMA-NTYPE JACK-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T02V0003060i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T02V0003060i

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1T02V0 Series

Part	Overall Impedance	Frequency - Max [Max]	1st Connector	2nd Contact Gender	Features	2nd Connector	1st Connector Mounting Type	1st Contact Gender	2nd Connector Mounting Type	2nd Connector Mounting Feature	Style	Length [x]	Length [x]	Color	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-1T02V0003018i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type	457.2 mm	457.2 mm	Black	RG-174
Amphenol Custom Cable Q-1T02V0005003i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	3 in	76.2 mm
Amphenol Custom Cable Q-1T02V0005108i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-1T02V0005.75M	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	29.53 "	750 mm
Amphenol Custom Cable Q-1T02V0005024i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	24 "	609.6 mm
Amphenol Custom Cable Q-1T02V0005018i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type	457.2 mm	457.2 mm	Copper	RG-316
Amphenol Custom Cable Q-1T02V0005001M	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-1T02V0003012i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Black	RG-174	12 "	304.8 mm
Amphenol Custom Cable Q-1T02V0003060i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Black	RG-174	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-1T02V0005009i	50 Ohms	11 GHz	SMA Jack	Female	Shielded	N-Type Jack	Free Hanging (In-Line)	Female	Panel Mount	Bulkhead - Front Side Nut	SMA to N-Type			Copper	RG-316	9 "	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.13
		25	$ 79.55
		50	$ 77.98
		100	$ 76.40
		250	$ 74.83

Description

General part information

Q-1T02V0 Series

Cable Assembly Coaxial SMA to N-Type RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
