FWC100024A-11A

Active

Inventus Power

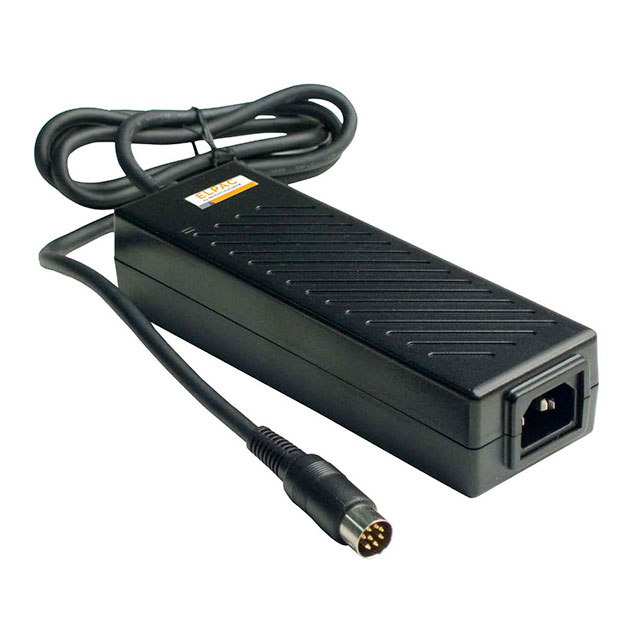

AC/DC DESKTOP ADAPTER 24V 98W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 98W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 24V 98W

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Applications	Current - Output (Max) [Max]	Output Connector	Output Connector	Input Connector	Approval Agency	Efficiency	Voltage - Output	Region Utilized	Cord Length	Cord Length	Input Type	Form
Inventus Power FWC100024A-11A	725.7 g	1.6 lbs	2.27 in	180.2 mm	1.52 in	7.09 in	57.5 mm	38.6 mm	200 mW	60 °C	0 °C	98 W	ITE (Commercial)	4.1 A	DIN	5 Pin	IEC 320-C14	CB, CE, cTUVus	Level VI	24 V	International	1.22 m	48 in	Cord	Desktop (Class I)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.99

General part information

24V 98 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
