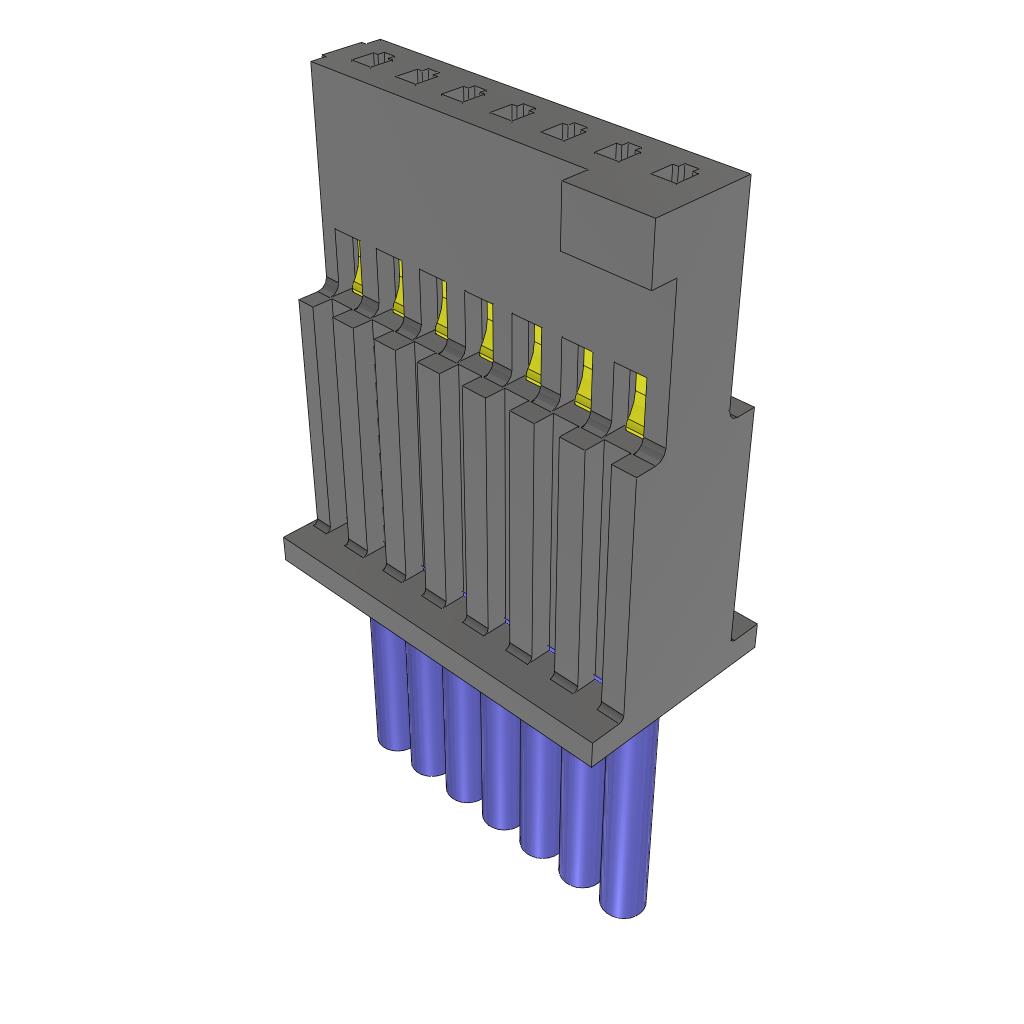

SFSS-07-28-G-12.00-S

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES SINGLE ROW DISCRETE WIRE ASSEMBLY, 0.050" PITCH

Search across all available documentation for this part.

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES SINGLE ROW DISCRETE WIRE ASSEMBLY, 0.050" PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	SFSS-07-28-G-12.00-S

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Number of Positions	7
Number of Rows	1
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

Rectangular Cable Assemblies Single Row Discrete Wire Assembly, 0.050" Pitch

Part	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Number of Positions	Cable Termination	Shielding	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color
Samtec Inc. SFSS-07-28-G-12.00-S	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads	7	Crimp	Unshielded	1	10 Áin	0.25 Ám
Samtec Inc. SFSS-03-28-G-04.00-D-NUS	0.05 in	1.27 mm	Gold	Socket to Socket		Crimp	Unshielded	1	10 Áin	0.25 Ám
Samtec Inc. SFSS-03-28-G-10.00-D-NUS	0.05 in	1.27 mm	Gold	Socket to Socket		Crimp	Unshielded	1	10 Áin	0.25 Ám
Samtec Inc. SFSS-05-28-G-06.00-S	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads		Crimp	Unshielded	1	10 Áin	0.25 Ám
Samtec Inc. SFSS-08-28-G-14.00-S	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads	8	Crimp	Unshielded	1	10 Áin	0.25 Ám
Samtec Inc. SFSS-10-28C-G-03.50-DR-NDS	0.05 in	1.27 mm	Gold	Socket to Socket	10	Crimp	Unshielded	1	10 Áin	0.25 Ám	Individual Multiple
Samtec Inc. SFSS-11-30-H-05.00-D-NUS	0.05 in	1.27 mm	Gold	Socket to Socket	11	Crimp	Unshielded	1	30 Áin	0.76 Ám
Samtec Inc. SFSS-07-30C-G-18.00-SR	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads	7	Crimp	Unshielded	1	10 Áin	0.25 Ám	Individual Multiple
Samtec Inc. SFSS-03-28C-G-12.00-S	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads		Crimp	Unshielded	1	10 Áin	0.25 Ám	Individual Multiple
Samtec Inc. SFSS-03-28C-G-06.00-SR	0.05 in	1.27 mm	Gold	Socket to Individual Wire Leads		Crimp	Unshielded	1	10 Áin	0.25 Ám	Individual Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Cable Assemblies Single Row Discrete Wire Assembly, 0.050" Pitch
