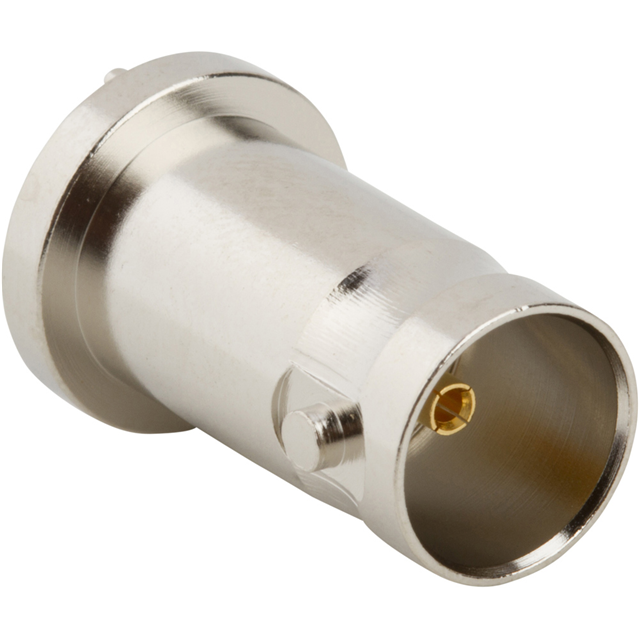

112405-10-2

Active

Amphenol RF

BNC STRAIGHT PCB JACK THROUGH HOLE 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

BNC STRAIGHT PCB JACK THROUGH HOLE 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	112405-10-2

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Body Material	Mounting Type	Body Finish	Dielectric Material	Impedance	Connector Style	Contact Termination	Number of Ports	Center Contact Plating	Connector Type	Mating Cycles	Shield Termination	Housing Color	Center Contact Material
Amphenol RF 112405-10-2	4 GHz	-65 ░C	165 °C	Bayonet Lock	Brass	Through Hole	Nickel	Polytetrafluoroethylene (PTFE)	75 Ohms	BNC	Solder	1	Gold	Female Socket Jack	500	Solder	Silver	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
