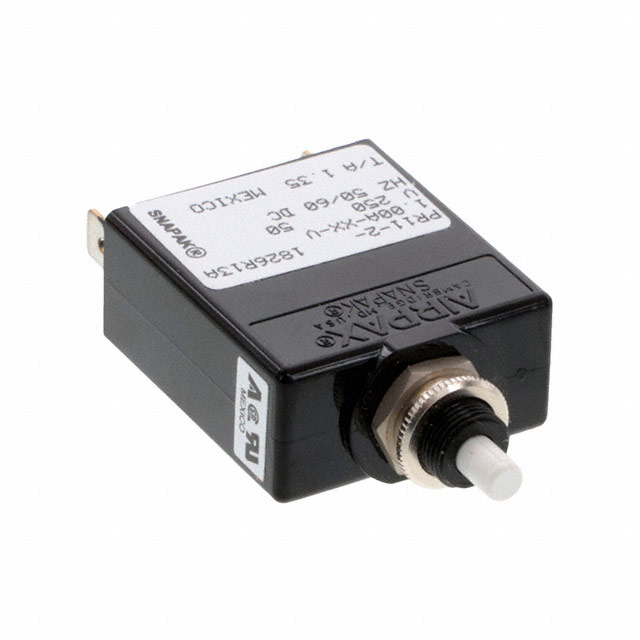

PR11-2-1.00A-XX-V
ActiveSensata-Airpax
CIR BRKR MAG-HYDR 1A PUSH-RESET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR11-2-1.00A-XX-V
ActiveSensata-Airpax
CIR BRKR MAG-HYDR 1A PUSH-RESET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR11-2-1.00A-XX-V |
|---|---|
| Actuator Type | Push to Reset |
| Breaker Type | Magnetic (Hydraulic Delay) |
| Number of Poles | 1 |
PR11-2 Series
| Part | Breaker Type | Current Rating (Amps) | Number of Poles | Actuator Type |
|---|---|---|---|---|
Sensata-Airpax | Magnetic (Hydraulic Delay) | 100 mA | 1 | Push to Reset |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 7.5 A | 1 | Push to Reset |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 15 A | 1 | Push to Reset |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 1 | Push to Reset | |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 20 A | 1 | Push to Reset |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 1 | Push to Reset | |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 1 | Push to Reset | |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 1 | Push to Reset | |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 10 A | 1 | Push to Reset |
Sensata-Airpax | Magnetic (Hydraulic Delay) | 5 A | 1 | Push to Reset |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.74 | |
Description
General part information
PR11-2 Series
Circuit Breaker Magnetic (Hydraulic Delay) 1A AC DC Push to Reset Panel Mount
