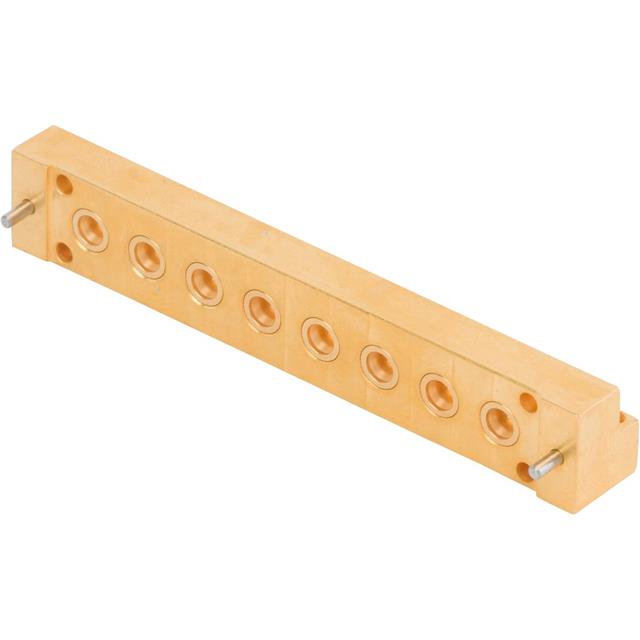

3211-60 Series

SMPM Connector Plug, Male Pin 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder

Technical Specifications

Parameters and characteristics for this part

Specification	3211-60180

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Catcher's Mitt
Frequency - Max	65 GHz
Housing Color	Gold
Impedance	50 Ohm
Mounting Type	Board Edge, Right Angle, Through Hole, End Launch
Number of Ports	8
Shield Termination	Solder

3211-60 Series

Part	Center Contact Plating	Body Material	Dielectric Material	Body Finish	Connector Type	Impedance	Connector Style	Frequency - Max	Center Contact Material	Cable Group Diameter (Semi Rigid)	Cable Group	Number of Ports	Features	Mounting Type	Shield Termination	Contact Termination	Fastening Type	Housing Color	Mating Cycles	Cable Group Size	Operating Temperature (Min)	Operating Temperature (Max)

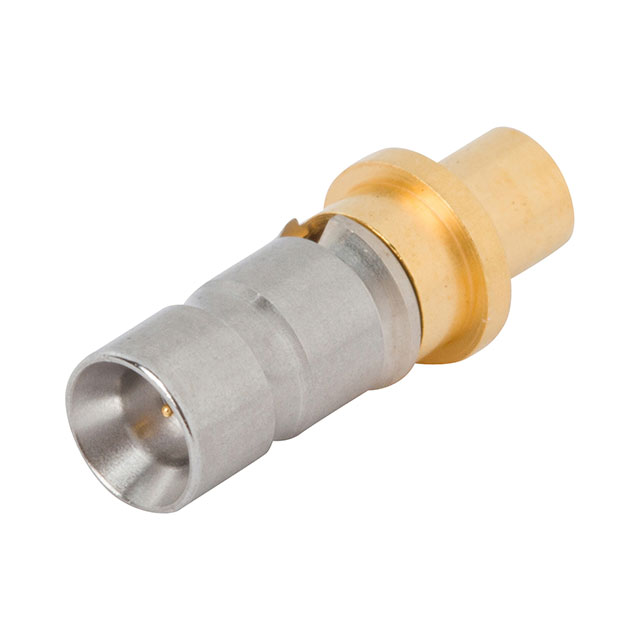

McGill Microwave Systems 3211-60327	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper	0.085 in	RG-405	1	Smooth Bore	Free Hanging (In-Line)	Solder	Solder	Snap-On	Gold Silver
McGill Microwave Systems 3211-60087	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	65 GHz	Beryllium Copper			2	Full Detent	Board Edge Cutout Surface Mount	Solder	Solder	Snap-On	Gold	100 cycles
McGill Microwave Systems 3211-60351	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper		Semi Rigid	1	Smooth Bore	Free Hanging (In-Line)	Crimp	Crimp	Snap-On	Gold Silver		0.047 "
McGill Microwave Systems 3211-60035	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper			1	Smooth Bore	Board Edge Cutout Surface Mount	Solder	Solder	Snap-On	Gold
McGill Microwave Systems 3211-60307	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper			1	Pre-Tinned (J-STD-001) Smooth Bore	Board Edge Cutout Surface Mount	Solder	Solder	Snap-On	Gold	500 cycles		-65 °C	165 °C

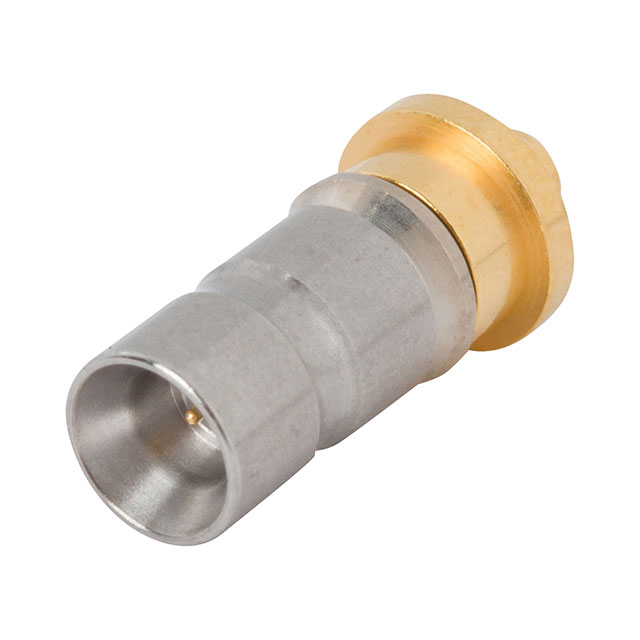

McGill Microwave Systems 3211-60326	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper		Semi Rigid	1	Smooth Bore	Free Hanging (In-Line)	Solder	Solder	Snap-On	Gold Silver		0.047 "
McGill Microwave Systems 3211-60180	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	50 Ohm	SMPM	65 GHz	Beryllium Copper			8	Catcher's Mitt	Board Edge End Launch Right Angle Through Hole	Solder	Solder	Snap-On	Gold

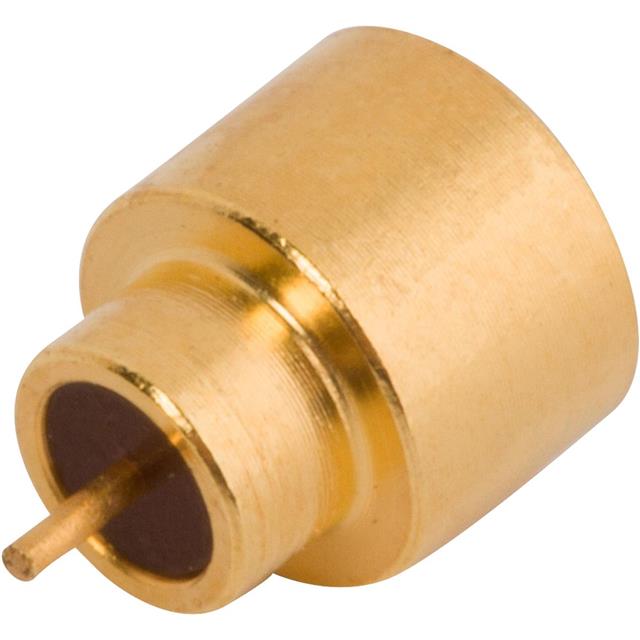

McGill Microwave Systems 3211-60027	Gold	Cobalt Iron Nickel		Gold	Male Pin Plug	50 Ohm	SMPM	40 Gbps	Cobalt Iron Nickel			1	Full Detent	Free Hanging (In-Line)	Solder	Solder	Snap-On	Gold			-55 °C	165 °C

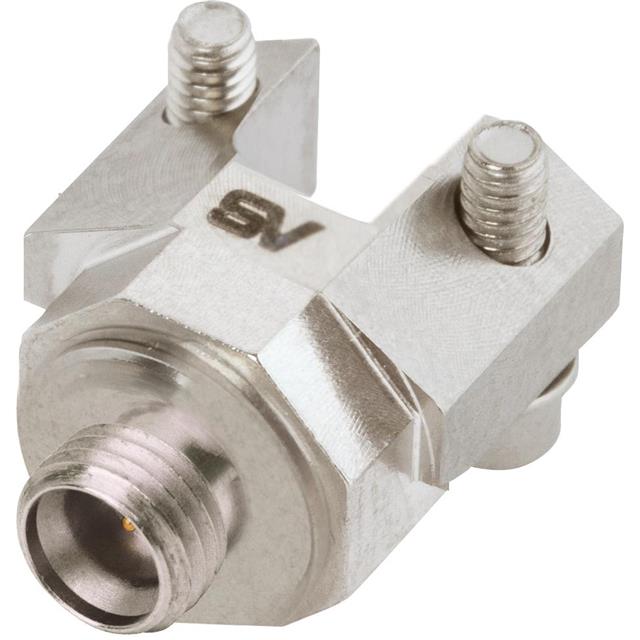

McGill Microwave Systems 3211-60407-2S	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)		Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper			1	Smooth Bore	Board Edge End Launch	Screw	Compression	Threaded	Silver	500 cycles		-65 °C	165 °C
McGill Microwave Systems 3211-60407-1S	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)		Male Pin Plug	50 Ohm	SMPM	40 Gbps	Beryllium Copper			1	Smooth Bore	Board Edge End Launch	Screw	Compression	Threaded	Silver	500 cycles		-65 °C	165 °C
