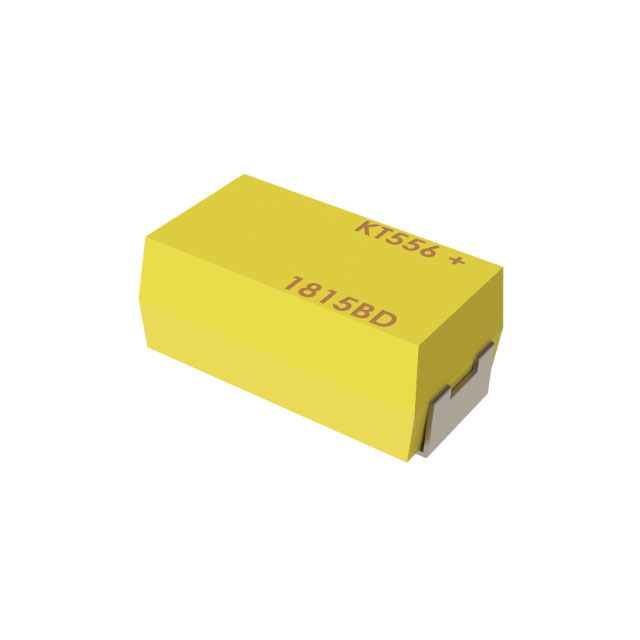

T556B127K015AH

Active

KEMET

CAP TANT POLY 120UF 15V SMD

T556B127K015AH

Active

KEMET

CAP TANT POLY 120UF 15V SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

T556B Series

120 µF Hermetically Sealed Tantalum Polymer Capacitor 15 V Nonstandard 110mOhm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

Specification	T556B127K015AH

Capacitance	120 µF
ESR (Equivalent Series Resistance)	110 mOhm
Features	General Purpose
Height - Seated (Max)	0.378 in
Lifetime	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Size / Dimension Length	0.965 in
Size / Dimension Width	0.335 in
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	15 V

T556B Series

Part	Manufacturer Size Code	Voltage - Rated	Capacitance	Tolerance	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Features	Type	Package / Case	Lifetime	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension Width	Size / Dimension Length
KEMET T556B187K010AH	B	10 V	180 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	0.335 in	0.965 in
KEMET T556B187M010AH	B	10 V	180 µF	20 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	0.335 in	0.965 in
KEMET T556B506K025AT	B	25 VAC	50 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	0.335 in	0.965 in
KEMET T556B506K025AH	B	25 VAC	50 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	0.335 in	0.965 in
KEMET T556B127K015AH	B	15 V	120 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	0.335 in	0.965 in
KEMET T556B206M060AT	B	60 VDC	20 µF	20 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	200 mOhm	0.335 in	0.965 in
KEMET T556B107M050AT	B	50 V	100 µF	20 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	130 mOhm	0.335 in	0.965 in
KEMET T556B687K008AH	B	8 VDC	680 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	90 mOhm	0.335 in	0.965 in
KEMET T556B687K008AT	B	8 VDC	680 µF	10 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	90 mOhm	0.335 in	0.965 in
KEMET T556B506M025AT	B	25 VAC	50 µF	20 %	0.378 in	125 °C	-55 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	0.335 in	0.965 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

T556B127K015AH Spec

T556B127K015AH | Datasheet
