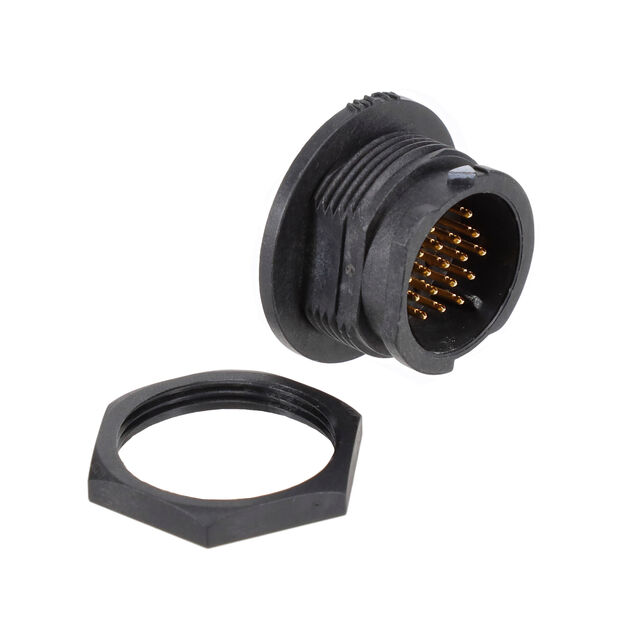

DD-18PMMS-QC8001

Active

Amphenol LTW

X-LOK, LARGE SIZE, PLASTIC, 5A, 18 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COMPLI

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, LARGE SIZE, PLASTIC, 5A, 18 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COMPLI

Technical Specifications

Parameters and characteristics for this part

Part	Color	Ingress Protection	Mounting Feature	Fastening Type	Contact Finish - Mating	Voltage Rating	Shielding	Current Rating (Amps)	Shell Size - Insert	Connector Type	Orientation	Contact Material	Primary Material	Insert Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW DD-18PMMS-QC8001	Black	IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Bayonet Lock	Gold	300 VDC	Unshielded	5 A	D	Male Pins Receptacle	Keyed	Copper Alloy	Plastic	Thermoplastic	18	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder Cup
