XD16AWT-H0-0000-00000HJE2

Active

CreeLED, Inc.

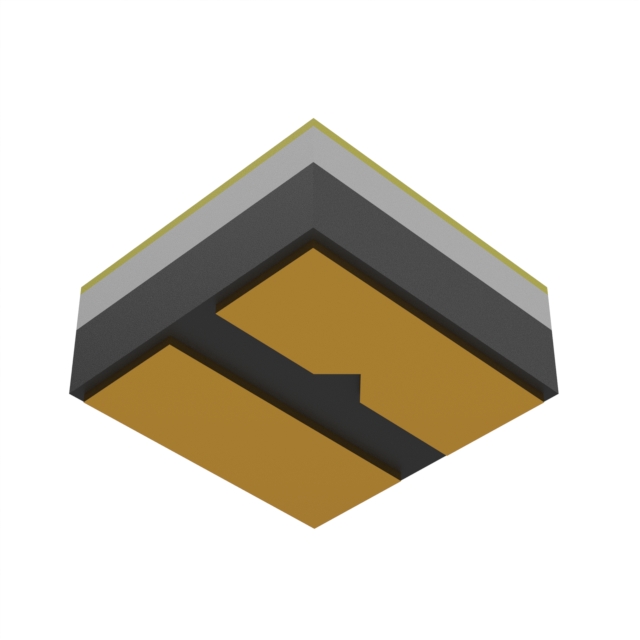

LED XLAMP COOL WHITE 5700K 0606

XD16AWT-H0-0000-00000HJE2

Active

CreeLED, Inc.

LED XLAMP COOL WHITE 5700K 0606

Description Specifications Series Pricing CAD Documents

Description

General part information

XD16AWT Series

LED Lighting XLamp® XD16 White, Cool 5700K 2.73V 350mA 135° 0606 (1616 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	XD16AWT-H0-0000-00000HJE2

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max	2 A
Current - Test	350 mA
Flux (Maximum)	156 lm
Flux (Minimum)	148 lm
Flux (Typical)	152 lm
Height - Seated (Max)	0.035 in
Lumens/Watt	159 lm/W
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Package Diameter	1616 mm
Package Name	0606
Size / Dimension Length	0.063 in
Size / Dimension Width	0.063 in
Viewing Angle	135 °
Voltage - Forward (Vf) (Typ)	2.73 V

XD16AWT Series

...

Part	Current - Max	CCT (K)	CCT Description	Flux (Maximum)	Flux (Typical)	Flux (Minimum)	Package Diameter	Package / Case	Package Name	Height - Seated (Max)	Lumens/Watt	CRI (Color Rendering Index)	Color	Current - Test	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Thermal Resistance of Package
CreeLED, Inc. XD16AWT-H0-0000-00000UD8E	2 A	2700 K	5-Step MacAdam Ellipse	114 lm	111 lm	107 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	116 lm/W	90	Warm White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount
CreeLED, Inc. XD16AWT-H0-0000-00000HHE7	2 A	3000 K		148 lm	144 lm	139 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	151 lm/W	80	Warm White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount
CreeLED, Inc. XD16AWT-P0-0000-00000BHE7	2 A	3000 K		148 lm	144 lm	139 lm	1616 mm	0606 (1616 Metric)	0606	0.033 in	151 lm/W	70	Warm White	350 mA	0.063 in	0.063 in	2.73 V	120 °	Surface Mount	1.8 °C/W
CreeLED, Inc. XD16AWT-P0-0000-000000GE7	2 A	3000 K		139 lm	135 lm	130 lm	1616 mm	0606 (1616 Metric)	0606	0.033 in	141 lm/W		Warm White	350 mA	0.063 in	0.063 in	2.73 V	120 °	Surface Mount	1.8 °C/W
CreeLED, Inc. XD16AWT-P0-0000-00000UEF7	2 A	3250 K		122 lm	118 lm	114 lm	1616 mm	0606 (1616 Metric)	0606	0.033 in	123 lm/W	90	Warm White	350 mA	0.063 in	0.063 in	2.73 V	120 °	Surface Mount	1.8 °C/W
CreeLED, Inc. XD16AWT-P0-0000-00000HFF7	2 A	3250 K		130 lm	126 lm	122 lm	1616 mm	0606 (1616 Metric)	0606	0.033 in	132 lm/W	80	Warm White	350 mA	0.063 in	0.063 in	2.73 V	120 °	Surface Mount	1.8 °C/W
CreeLED, Inc. XD16AWT-H0-0000-00000HK50	2 A	6200 K		164 lm	160 lm	156 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	167 lm/W	80	Cool White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount	6 °C/W
CreeLED, Inc. XD16AWT-H0-0000-00000HJE2	2 A	5700 K		156 lm	152 lm	148 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	159 lm/W	80	Cool White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount	6 °C/W
CreeLED, Inc. XD16AWT-H0-0000-000000GF7	2 A	3200 K		139 lm	135 lm	130 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	141 lm/W		Warm White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount	6 °C/W
CreeLED, Inc. XD16AWT-H0-0000-00000HFE5	2 A	4000 K		130 lm	126 lm	122 lm	1616 mm	0606 (1616 Metric)	0606	0.035 in	132 lm/W	80	Neutral White	350 mA	0.063 in	0.063 in	2.73 V	135 °	Surface Mount	6 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XD16AWT-H0-0000-00000HJE2 | Datasheet
