Q-1U03W0003024i

Active

Amphenol Custom Cable

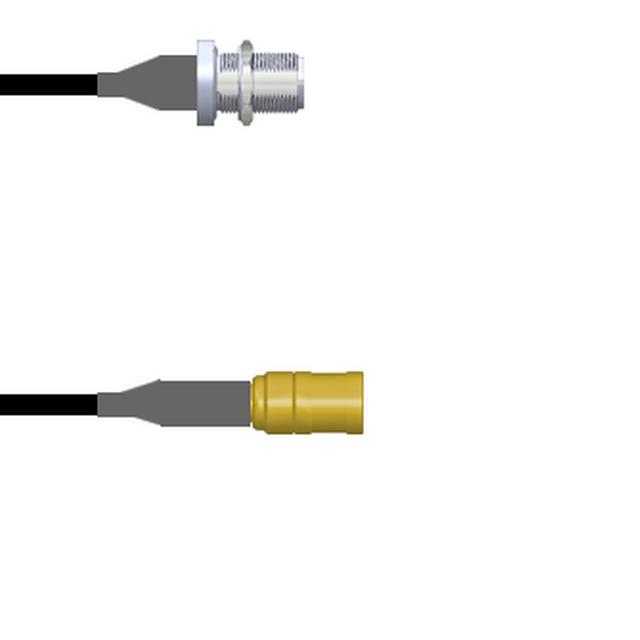

CBL ASSY SMB-NTYPE PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U03W0003024i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03W0003024i

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1U03W0 Series

Part	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector Mounting Type	Overall Impedance	Length	Length	1st Connector	2nd Connector	Cable Type	2nd Contact Gender	1st Contact Gender	Features	Color	Frequency - Max [Max]	Style	Length
Amphenol Custom Cable Q-1U03W00030.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	50 cm	19.69 "	SMB Plug	N-Type Jack	RG-174	Female	Female	Shielded	Black	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-1U03W0005084i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	2.1 m	84 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type	7 ft
Amphenol Custom Cable Q-1U03W0003024i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	609.6 mm	24 "	SMB Plug	N-Type Jack	RG-174	Female	Female	Shielded	Black	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-1U03W00051.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	1.5 m	59.1 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type	4.9 ft
Amphenol Custom Cable Q-1U03W0005003i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	76.2 mm	3 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-1U03W0005036i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	91.44 cm	36 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-1U03W0003036i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	91.44 cm	36 in	SMB Plug	N-Type Jack	RG-174	Female	Female	Shielded	Black	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-1U03W00052.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	2.5 m	98.4 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type	8.2 '
Amphenol Custom Cable Q-1U03W0005002M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	2 m	78.7 in	SMB Plug	N-Type Jack	RG-316	Female	Female	Shielded	Copper	4 GHz	SMB to N-Type	6.6 ft
Amphenol Custom Cable Q-1U03W0003006i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	152.4 mm	6 in	SMB Plug	N-Type Jack	RG-174	Female	Female	Shielded	Black	4 GHz	SMB to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.24
		25	$ 104.22
		50	$ 102.20
		100	$ 100.18
		250	$ 98.16

Description

General part information

Q-1U03W0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
